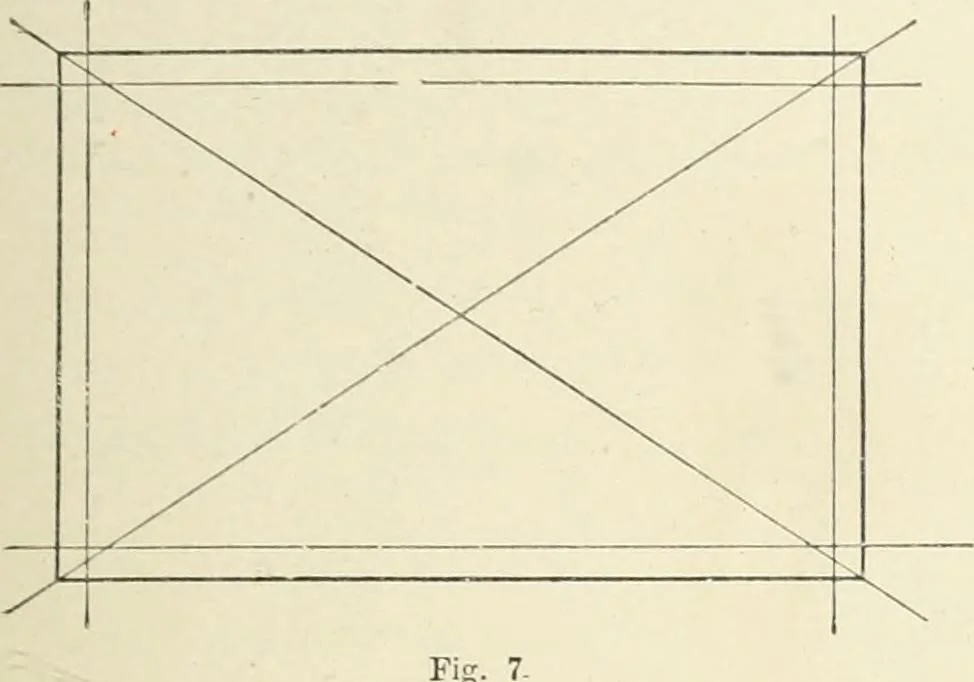

r, many machinists call it a box-rule. It is usuallymade in one piece, although gome manufacturers provide clampsby which the two separate pieces are held at right angles to oneanother. A more simple combination is shown in Fig. 8, thesecond scide being represented by two sj^cial clamps. 14 MACHINE… … is usually graduated on the inner edge, and the other on theouter edge. The flat square is not hardened. The try square, shown in Fig. 10, consists of a beam anda blade at right angles. The beani is much thicker than the
