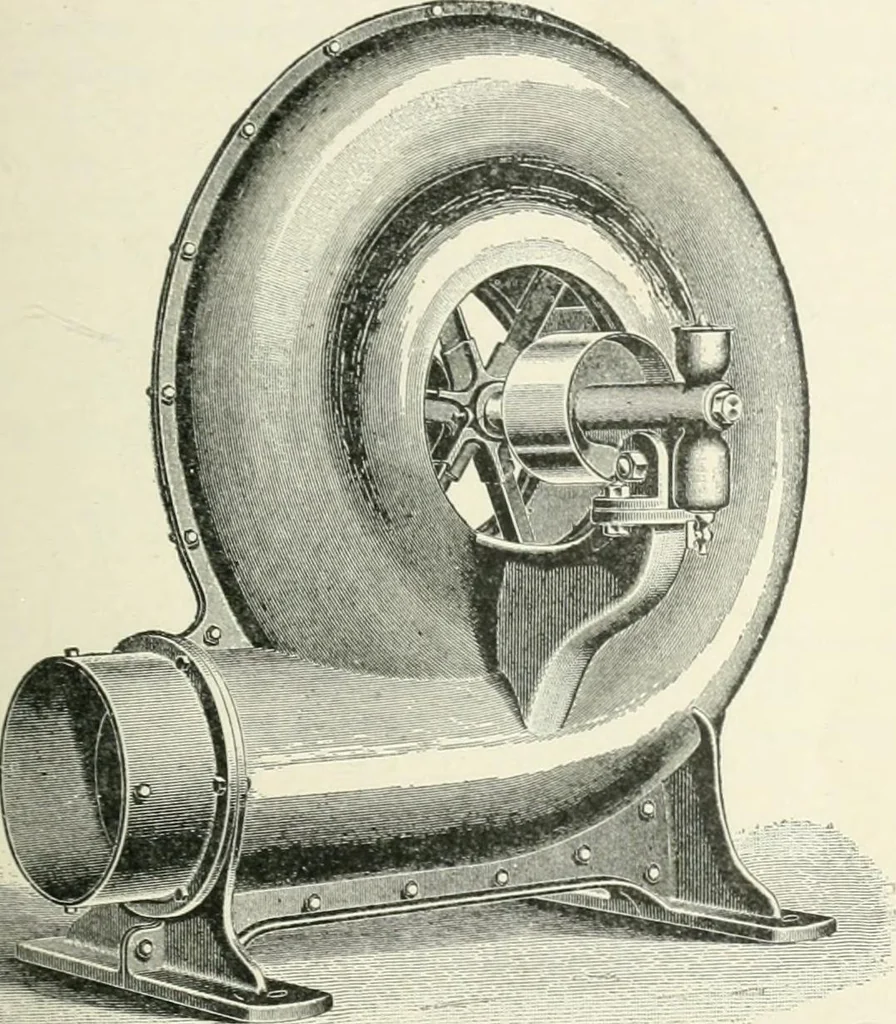

om tothe tuyere is open throughout. Where a power-driven blower furn-ishes the blast, there is a valve in the pipe for regulating the same. 268 FORGING 3 Tlie usual form of tuyere consists of a sins;le l)Iast pipe, open-inj, into the l)ottoni of the fire j)it. Tins may he a siinjjle noz/le asin… … Fig. 3. grate. AMiatever its form, it should I)e possible to clean it from be-low, in order that coal and clinkers falling into it may be removed.A modern type of forge is shown in Fig. 2. This is providedwith a hood for carrying off the smoke. The pipe connected to thehood extends dowTiward to an…
