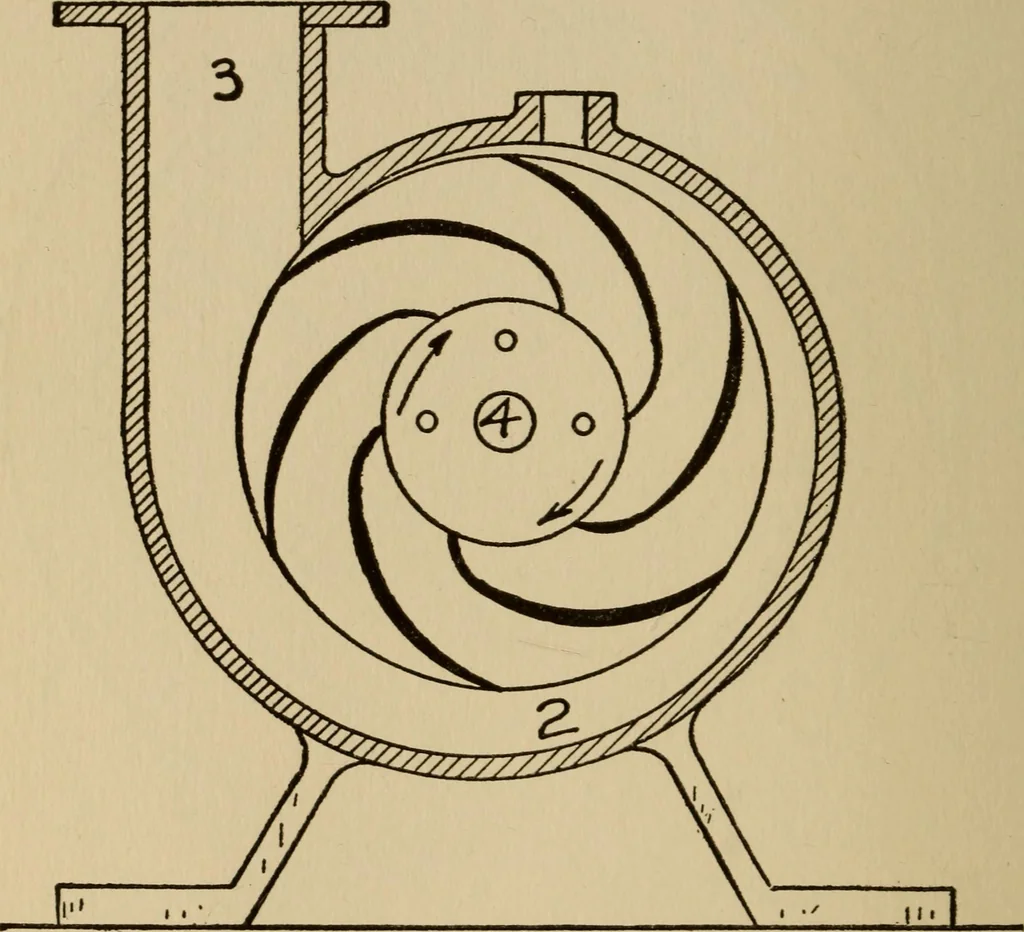

RO.35 trated in Fig. 36. This water is forced into a casingwhich gradually widens, as shown at 2, until itbroadens into the discharge passage, 3. 230. Q. How is water taken by this pump? 62 QUESTIONS AND ANSWERS ON A. It is drawn into the central opening, 4. 231. Q. What course does it follow after… … FiO. t>(o 232. Q. As water flows in very rapidly, does itnot cause severe end thrust on the driving-shaft?A. Yes, but it has no chance to heat. PUMPS AND PUMPING MACHINERY. 63 233. Q. What name is given this kind of centrifu-gal pump? A. It is known as the single-suction pump.
