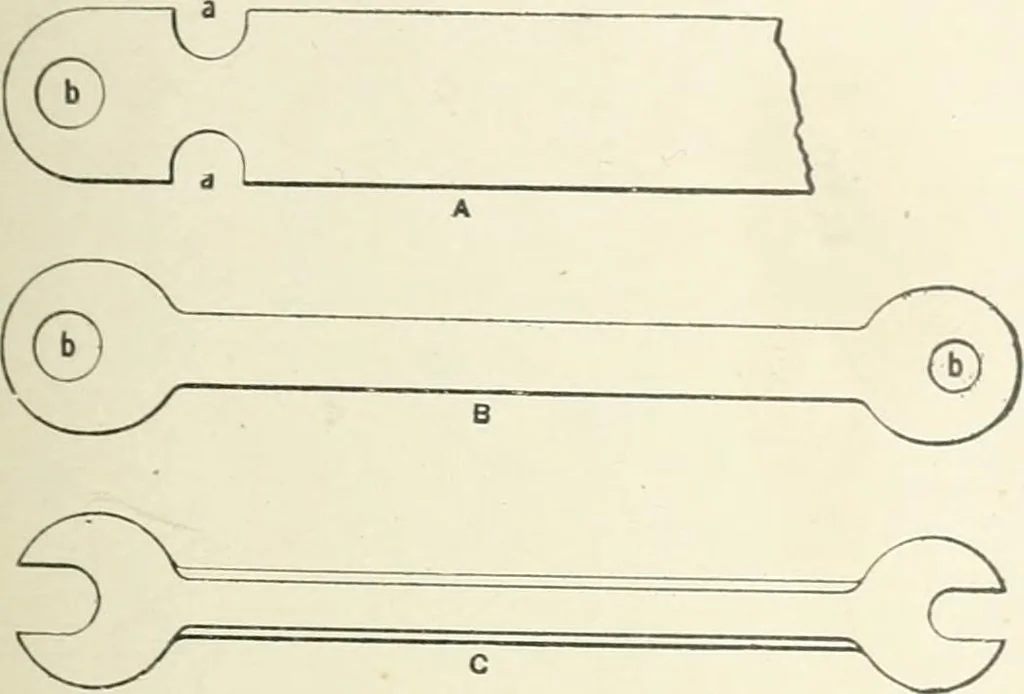

Fig. 10.,. Socket Wrenches are made in several ways. The easiest wayin hurry u]) work is the method illustrated in Fig. 107. A, stubis forged to the same size antl shape as the finished hole is to be, and 324 FORGING 57 a ring, bent up of thin flat iron, welded round this stub. When finish-ing the… … Fig. lOG.over this, between swages. A better way of making wrenclies oftills kind is to make a forging having the same dimensions as the fin-islicd WTench wth the socket end left solid. The socket end is then
