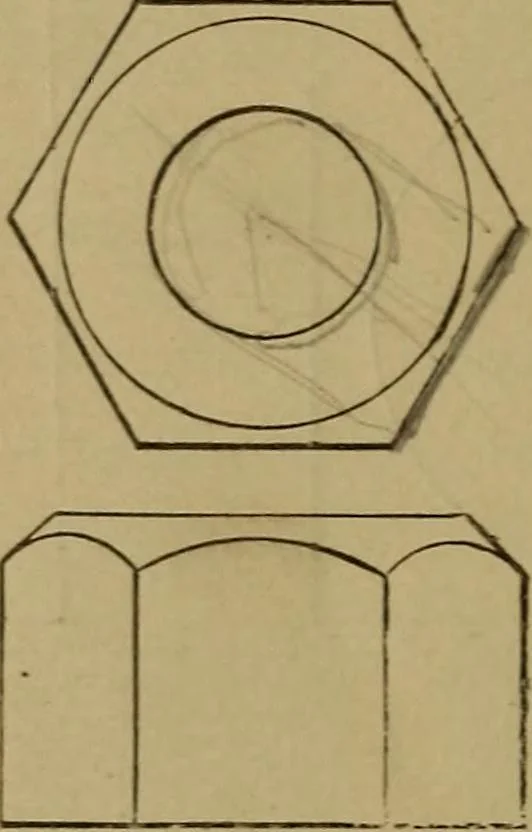

Fie Fii Fig. 102. while in Figure 101 the shade line is shown appliedto a nut. The shade line may be produced in straightlines by drawing the line twice over, and slightly in-clining the pen, or by opening the pen points a little.For circles, however, it may be produced either byslightly moving the…
