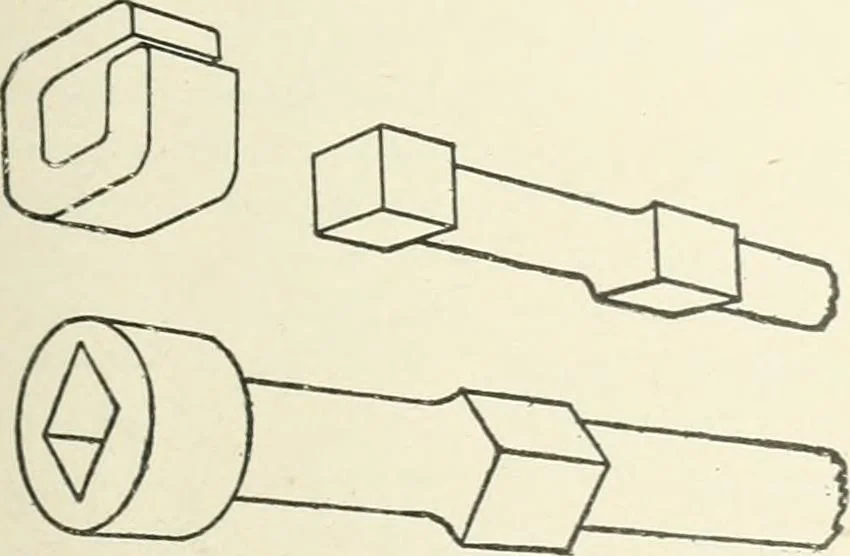

Fig. lOG.over this, between swages. A better way of making wrenclies oftills kind is to make a forging having the same dimensions as the fin-islicd WTench wth the socket end left solid. The socket end is then … Fig. 107.drilled to a depth slightly greater than the socket is wanted. Thediameter of the drilled hole should be as showTi in Fig. lOS, equalto the shortest diameter of the finished bole. After drilling, the socketend is heated and a punch, of the same shape as the finished hole. 58 FORGING driven…
