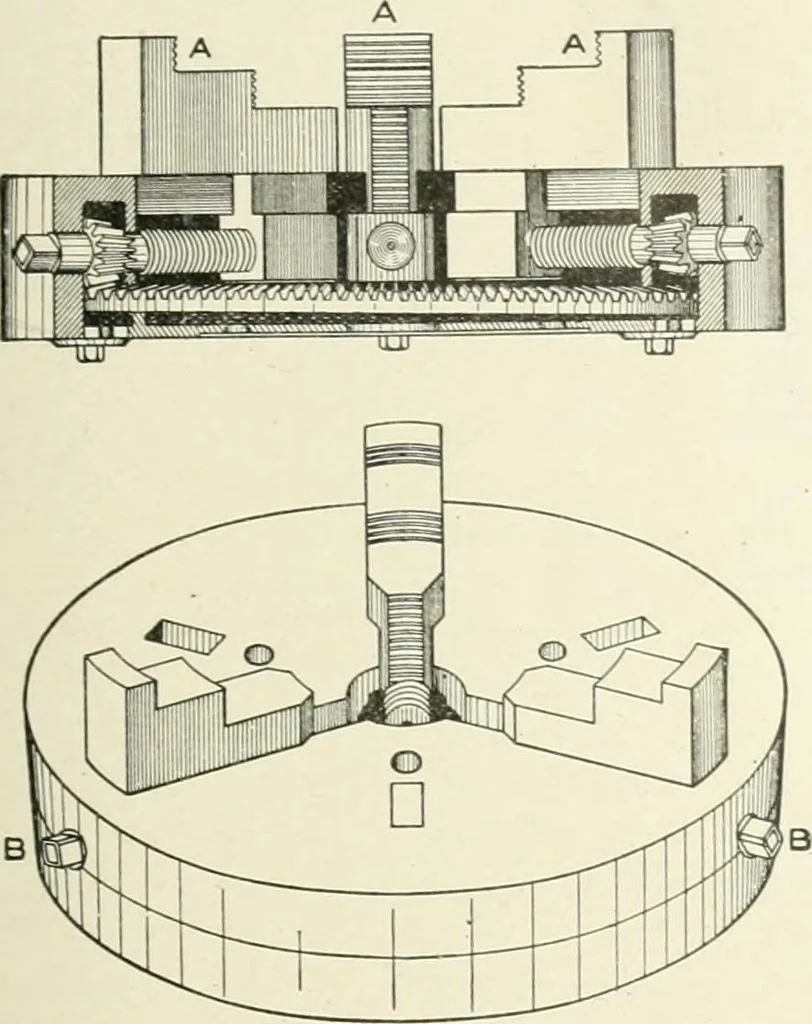

which is fastened to a special face plate in such … a way that it is concentric willi the spindle. The three jaws AAAcan be moved in and out toward the center by turning the screw-beads 15BB. These chucks arc univeisalor independent, hi theuniversal chuck all of the jaws are operated siiuTdtaneousIy.That is, when one of the screw heads B is turned,…
