Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 124

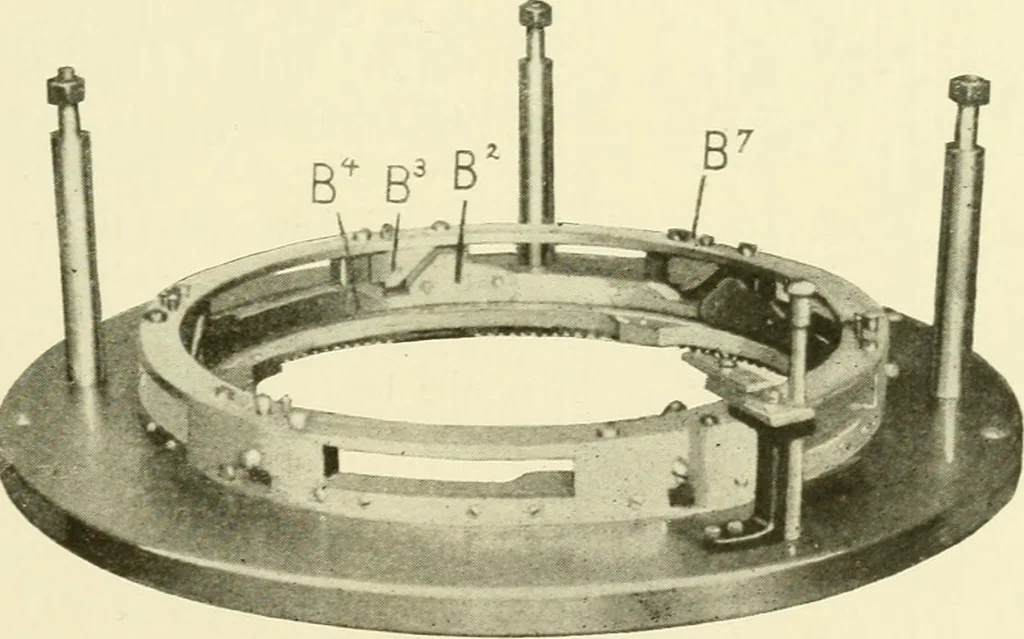

Fig. 40. Needle Cyliuder. To the right housing plate Y is secured the driving shaft bracket I,which makes the outer bearing for the driving shaft, and on the shaftJ are tight and loose pulleys between the bearings. Outside the … Fig. 41. Cam Ring. shaft bracket bearing is a hand wheel J, for turning the machine l)yhand when occasion requires. Attached to the shaft arm is a beltshipper with belt and handle. On the shaft, inside the housing, isa bevel pinion K, which, meshing into the needle cylinder gear L,rotates the…
