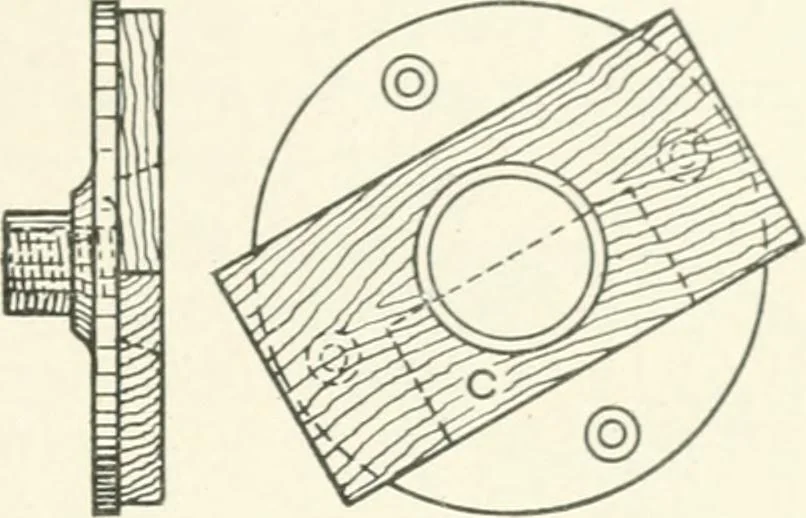

Fig. 14Ga. ^Vnother method frequently used for small boxes, is to workout th(5 center of the curve with a rabbet plane, forming a right-angled opening, as shown in Fig. 140, the remaining wood beingremoved with the round plane and finished with the cylinder andsand paper as before. 80 PATTERN… … As tht work progresses, the accuracy of the curve is tested bymeans of a try square, or other 90° angle, as shown in Fig. 146a. The tajKTed end of the box c (Fig. 143) is turned from a blockof wood, screwed to the faceplate of the lathe as shown inFig. 147. After the hole isturned to the required…
