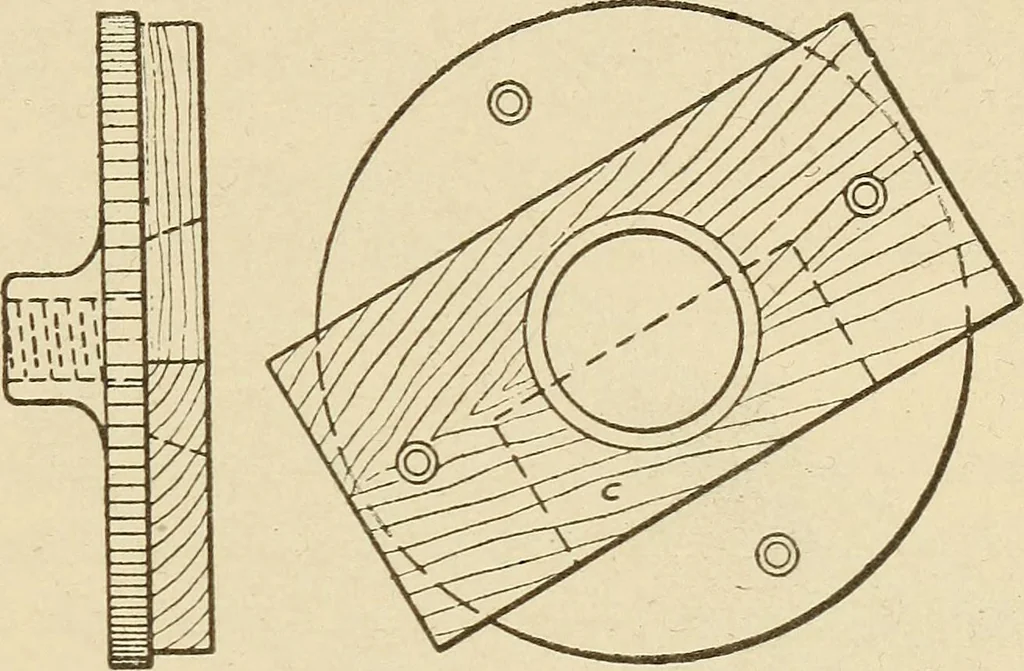

Fig. 145. Skeleton View of Machine Saw withTable Tilted to 45 Degrees PATTERN MAKING 73 … Fig 14G. Cope End of Core Box Mounted on Faceplatelor Turmng Tapered Section at c. Fig. 140 the nowel core print—and cut another piece e to the length c ofthe cope core print. The uaste in the semicylindrical hole in d is to be removed asfollows: Make two machine-saw cuts, as at i, Y\g. 147, about…
