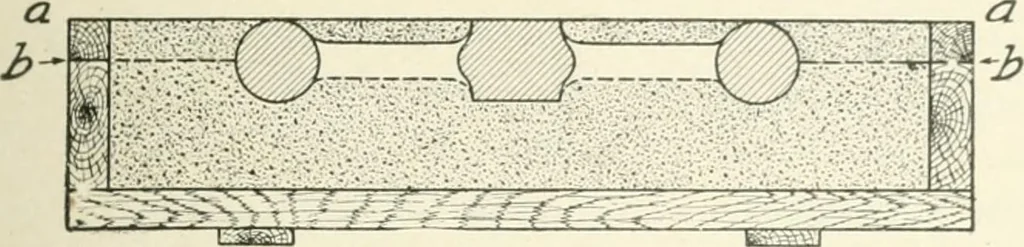

ROUND MOULDING hiACHINEFor Making Wheels.Henry E. Pridmore. FOUNDRY WORK 33 wetljre into tlie cut with the danger of a drop or break wlien the copeis lifted. In manv cases, more especially in floor work, an abrupt copingangle niav be avoided as follows: Set wooden strips, whose thickness … tev-.yr\A I F\<z. 41. Molding a Hand Wheel. is equal to the depth of the desired coping, under the edges of the dragwhen ramming up the pattern. (Ise, for example, tlie hand wheelshown in Pattern ^Making, page 58). When the drag is rolled overthe sand will be level with the top of strips and…
