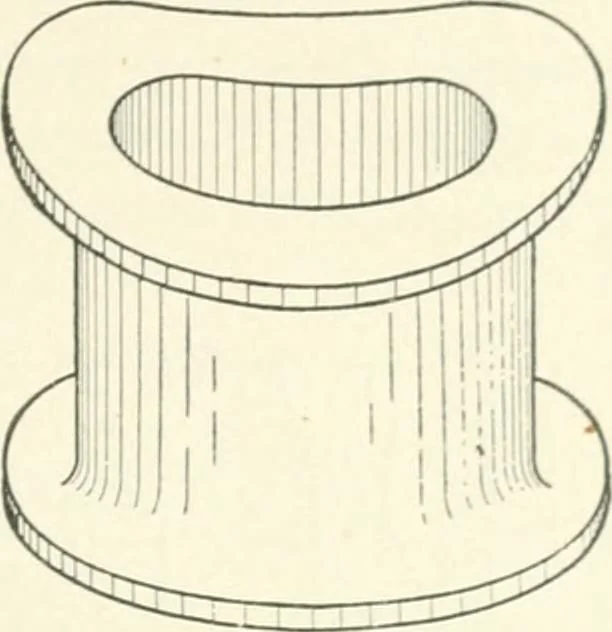

Fig. 47 Fig. 48. intermediate body of sand is carried in a cheek part to the flask,and we speak of it as three-part work. Fig, 48 shows a casting for a 10-inch nozzle, the mold for whichillnstrates this class of work. Here the pattern is separated just abovethe fillet of the curved flange.Fig. 49…
