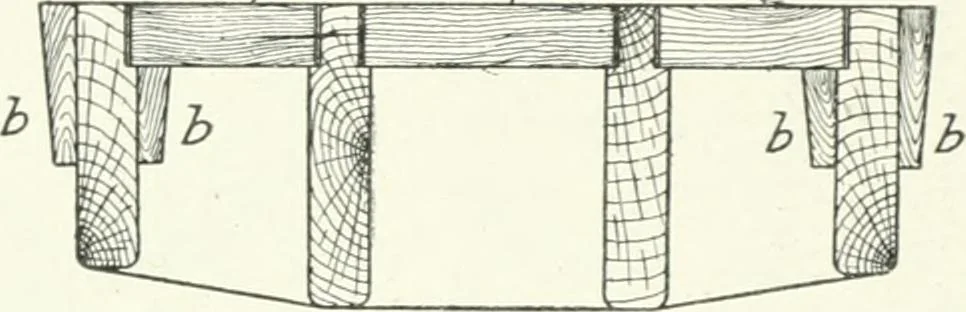

ion. ing, pages 61-116. In molding .such work, care mu.st be taken that theoverhanging portion of sand shall l^e strong enough to support itself.\\Tiere the projection is deep, the mold should be strengthened bynails or rods as shown in Yi^. 51. These should be wet with clav washand set into the… … Fig.53. Bediled-in Work. ways bedded in the floor. Thi.s method is still much used in jobbingshops to avoid making a complete large fla.sk. The mold shown in Fig. 52 will illustrate the principal operationsinvolved. The casting is a flask section ^or a special steel ingot mold,and in design is…
