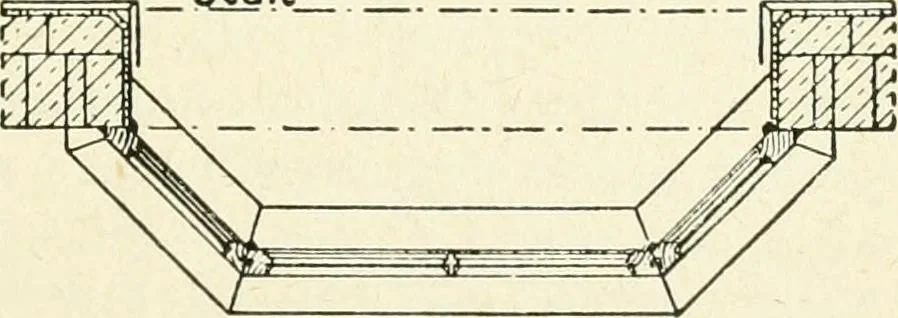

HorL7.ontal SccttorvFig. 90. sashes, or of solid frames with easement sashes, thehead of the frame is cut out of the solid. A headwhich, owing to the size of the curve, cannot easily beobtained in one piece, is built up of segments, the ^t3|0 |« |2 ^ ^ ,5 ,6 ,7 ,8Feer inched ? I ■? I _ Scale … Horizontal Sechon. Pig. 90 Va. joints being radial to the curve, and secured by hard-wood keys. As an alternative method, the head maybe built up of two thicknesses—with overlappingjoints—and secured together by screws. 220 MODERN CARPENTRY A sash and frame window m such an opening mayhave only the…
