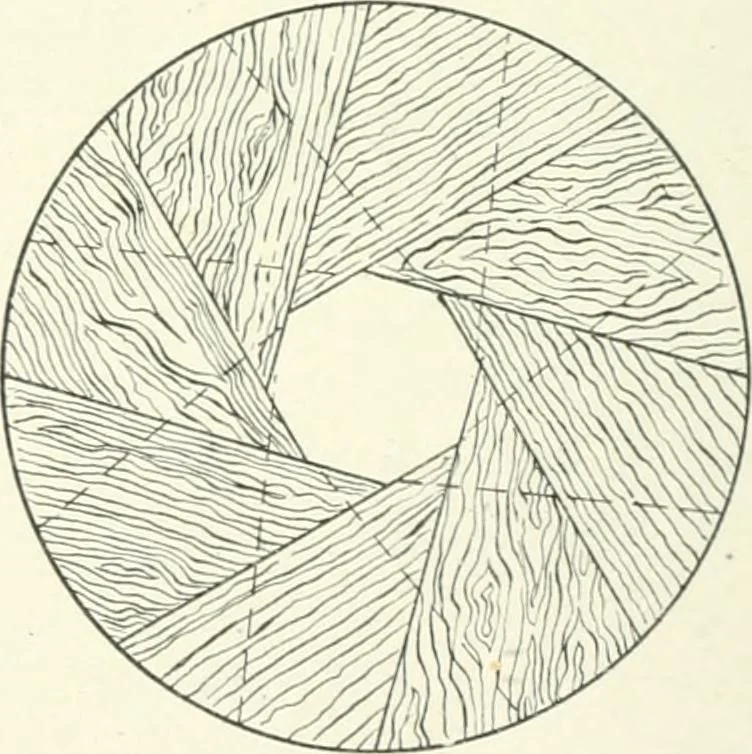

as shown in Fig. 7. The grain of the wood must nm lengthwise, and parallel to the longest side of each sector; and, after the pieces have been fitted together, a thin groove is cut in the edge of each, in which thin tongues of wood are inserted and glued, as illustrated in Fig. 8. Two disks are… … FifT. 7. Fig. 8. tion, and one which, owing to the continual change in the directionof the grain, will not warj). Should a wide and thin piece of a single thickness be requiredfor a patteni, the board from which it is to be made should beripped into strips of two. three, or four inches in width…
