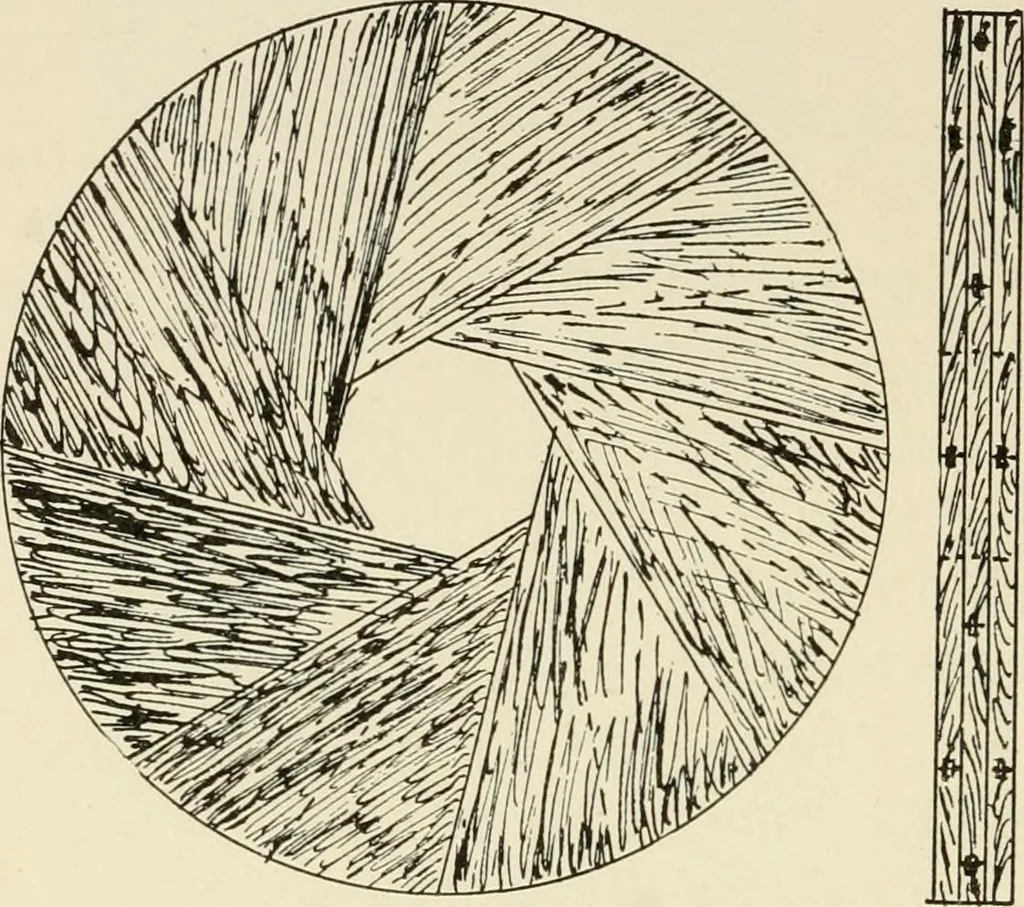

d to a minimum. In small patterns,however, this warping may be disregarded; therefore, asmall pattern may be cut from a single piece of wood.This matter of constructional joints may be most easilycomprehended by studying examples of forms likely tobe required. 56 WOOD PATTERN MAKING When thin disks… … Fig. 23. Fig. 24. lengthwise and parallel to the longest side of each sector.After the pieces have been fitted together, a groove iscut in the edge of each, in which tongues of wood areglued and driven as illustrated by Fig. 24. When onedisk has been glued up and the glue has dried, the sec-tors…
