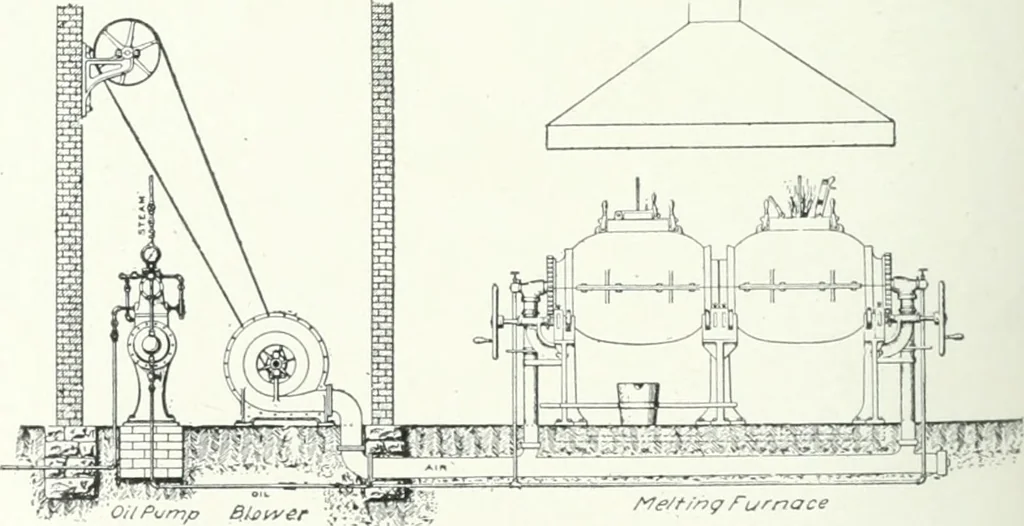

Fig. 135. Section Through Oil Furnace. has tandem melting chambers with burners at the end, which may beused separately or both together. The waste ga.ses from the i)ath ofliquid metal are used to heat up a fresh charge in the other chamber. … /•^e/f/ng /ufnace Fig. 136. Oil Furnace—General Elevation.The metal is charged and poured from the openings at the top of thefurnace. Each chamber may be revolved separately, to empty thefurnace when the charge is melted. Fig. 13G shows the general ar*rangement of the oil feed pump, and blower for…
