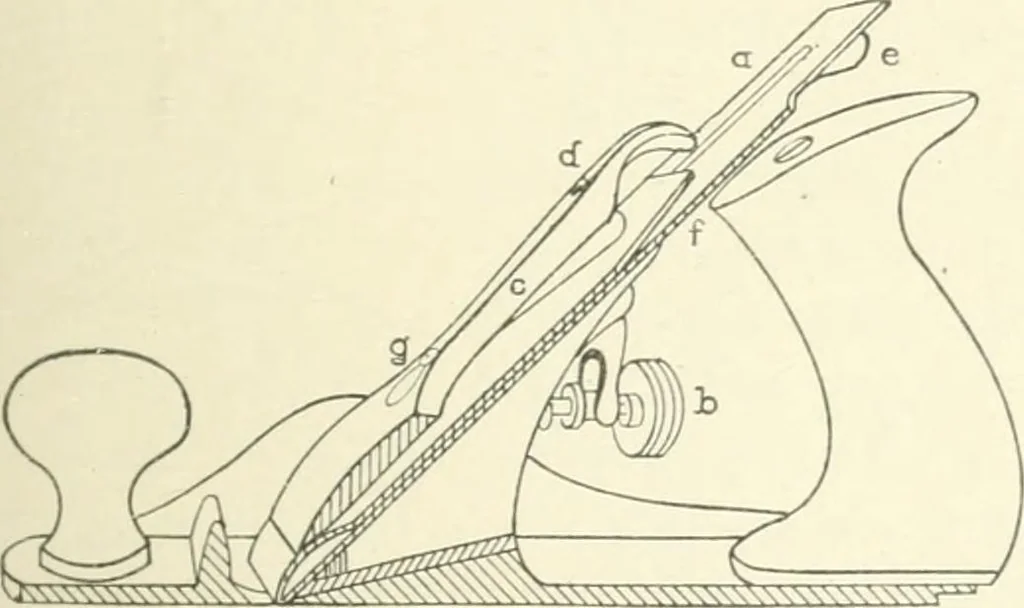

required thickness of shav-ings, are greatly to be preferred to the old-style wooden planes.The general construction of the iron i)lane will be readily understood from Fig. 23,one side of the planebeing removed to showthe arrangement of theparts; a is the cutter,or plan(siron, which ismade of the… … Fig. 2i. by an adjusting screw, as shown in Fig. 24. For whetting orgrinding the cutting edge, it is not necessary to remove the cap-iro2x, 23 16 PATTERN MAKING but only to loosen tho connecting scre^y and to slide tlie capback to the extreme end of th(- slot in the plane-iron, tightening itthere…
