Taggart, William Scott · London : George Routledge & Sons, Ltd. · leaf 35

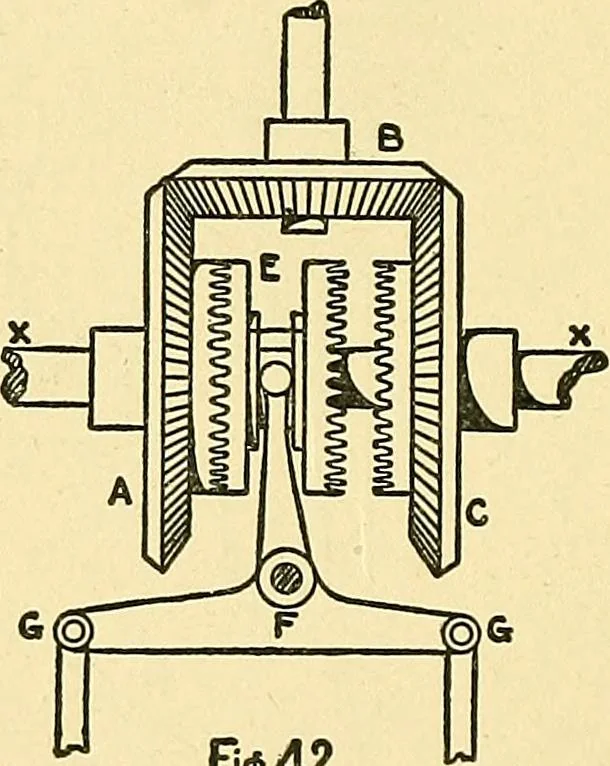

en them ; they are mounted on afloating key so that they both revolve with the shaft X. Bymeans of a lever and rod or any other suitable means the bevelA is moved into gear with the bevel B and drives it in onedirection. If the lever centred at D is now actuated, thebevel A is moved away from B and… … Fi.t42 the bobbin rail. An adaptation of this method is seen inFig. 42. Here the shaft X runs continuously in one direction.The bevels A and C are loose on the shaft; each of thesebevels is provided with one half of a clutch. A double-facedclutch E is mounted on the shaft X on a floating key so…
Textile machinery
