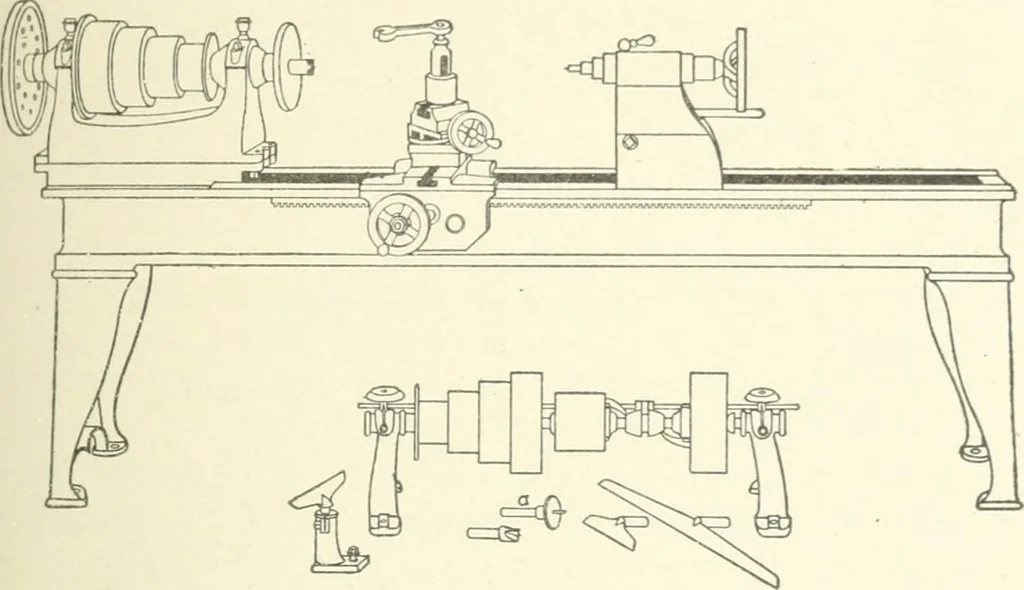

te and the pattern.These wooden face-plates are constructed in a variety of ways bydifferent pattern makers; but for small patterns it is necessary to 52 PATTERN MAKING 45 usG only a plain board § inch to 1^ inches in thickness and of aslightly greater diameter than the required pattern. This board… … Fig. 88. patterns of a medium size, say 20 inches to 30 inches in diameter,the board should be stiffened by means of a wide wooden bar firmlyscrewed across the back, as in Fig. 90. When chucks are needed for very large or hea\y work,the chuck, in order to preventvibration, must be strong…
