Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 208

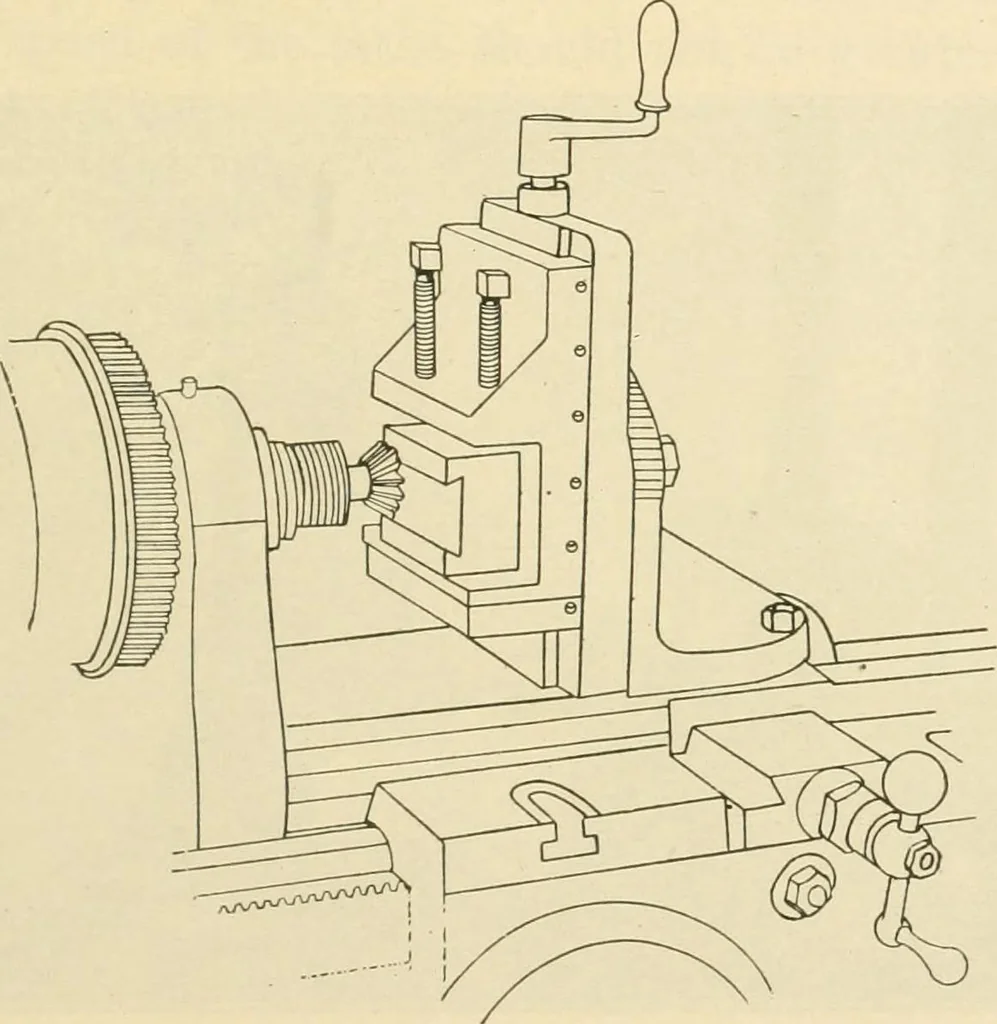

242. The simplic-ity of the little device can be appreciated and very little Special Lathe Work 207 work is necessary to assemble it for use. If it is mountedon the ceiling the proper distance above the lathe it willbe found possil)le to cause the drill spindle to move backand forth the full… … Fig. 243—A milling attachment in use ing attachment is either purchased or made to mountupon the cross slide. A milling attachment is reallynothing more or less than a vise mounted upon the crossslide to hold the work, and Avhat is known as a milling-cutter is placed in the chuck or head spindle of…
Machine-shop practice · Handicraft
