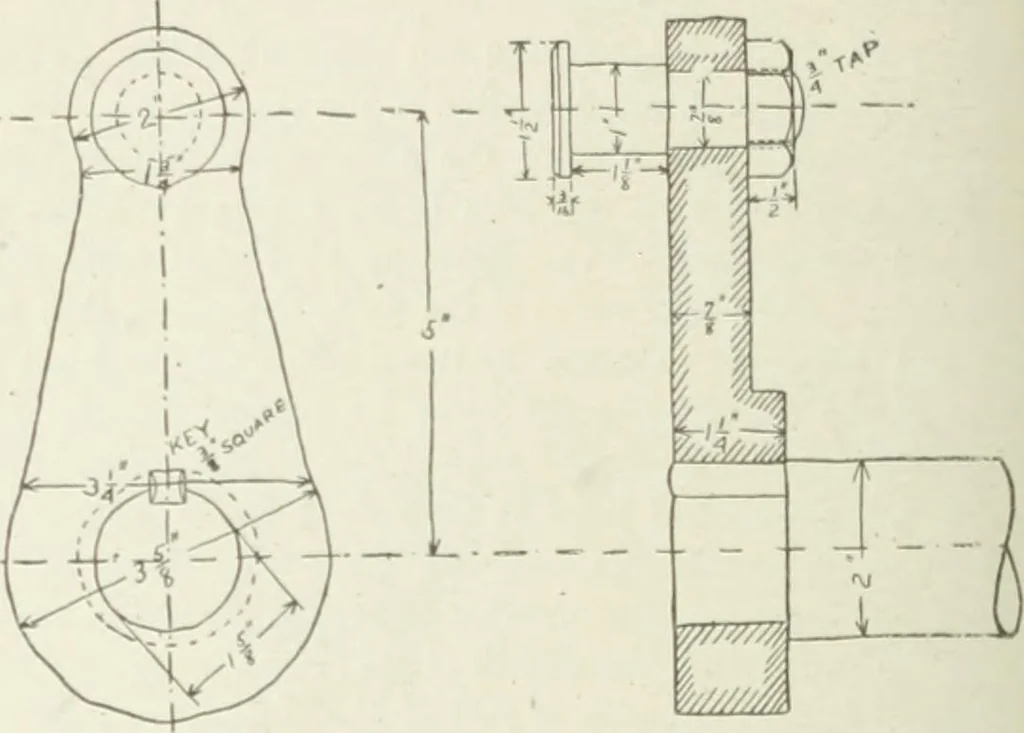

he end view 2^ inches from theright-hand border line; the horizontal center line will of course bea continuation of that of the side view. Note that the left-handhalf f the plan represents what is seen by looking up frombelow. The cutting plane for the right-hand half passes hori-zontally through… … l-ig. •18. Fi«. 49. PLATE X .Overhung Crank. The two drawings on this plate are to bemade full size from the free-hand sketches Figs. 48 and 4.t. Theseare such as would be given the draftsman or such lie would makefor Lis owa work. Place the two views so that they will lookwell on the plate. Put on…
