Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 175

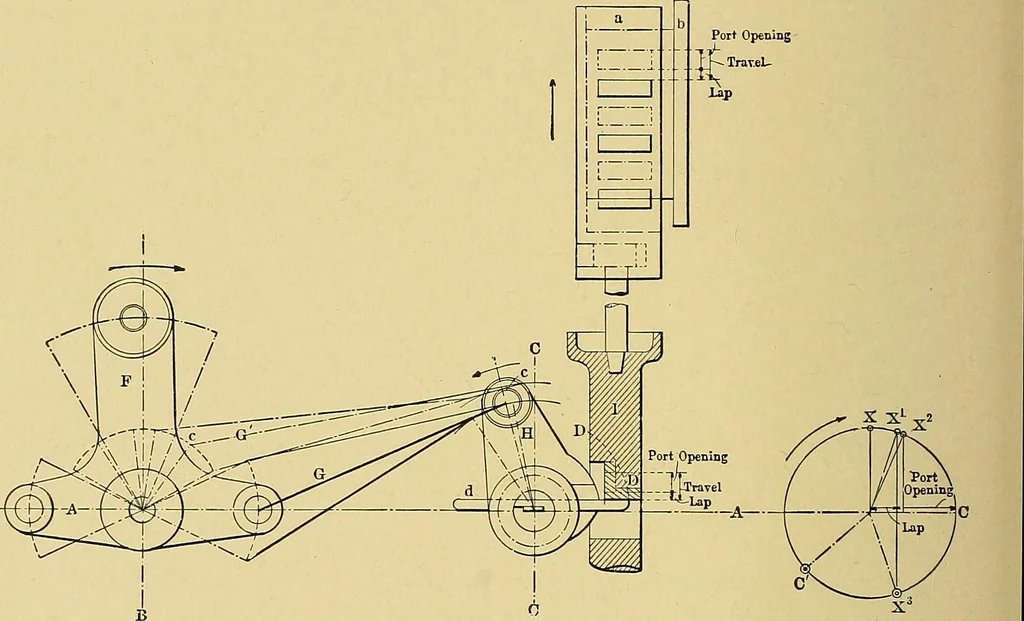

de, but this must not be mistaken for the true relativeposition of the valve to the valve gear. One steam valve is shown only. In Fig. 169 * the wrist plate F, valve crank //, yoke / and valve a are inthe position at which the valve is lapped, and the wrist plate and eccentricare on the center of… … FIG. 169. dotted line D D shows the arc in which the end of the plate d travels whenthe valve admits steam during the full stroke, and to the right of Fig. 169is the eccentric circle in which X, X^, X^ and X^ are separate eccentricpositions, and C and C are two separate positions for the crank.…
Steam-engines
