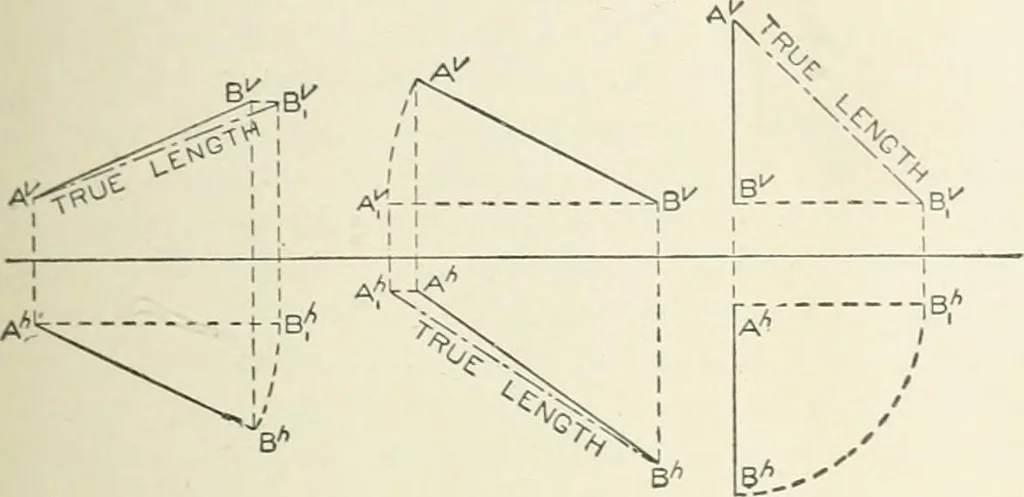

46 MECHANICAL DRAWING. Third plane of projection or profile plane. A plane pei-pen- dicular to both eo-onlinate planes, and hence to the ground line, ia … called a profile plane. This plane is vertical in position, and maybe used as a plane of projection. A projection on the profile plan>3is called a profile view, or end view, or sometimes edge view, andis often required in machine or other drawing when the plan andelevation do not sufBcientl}^…
