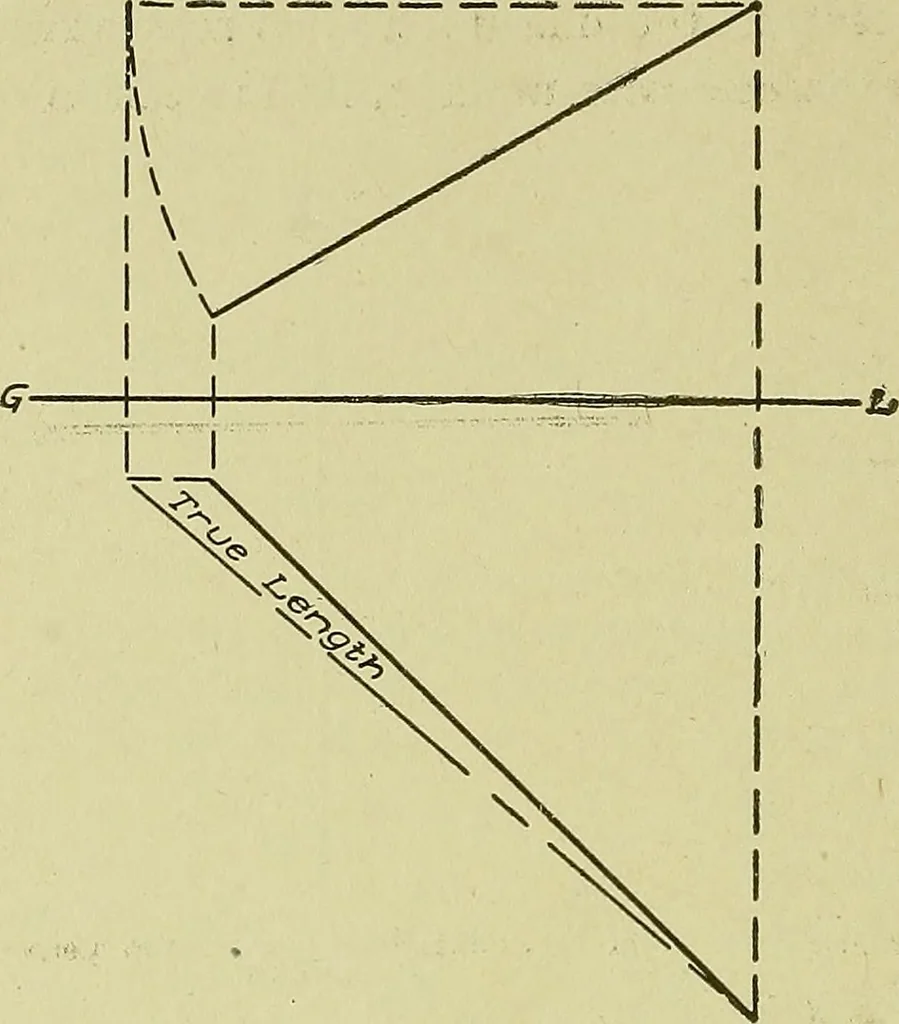

A^B aboutone end A as a pivot,until it is parallel to theground line. Project thenew point Bi downwardto a point on the verticalplane to a line drawn fromB parallel to the groundline, locating the point ^i.The line connecting ^iand A is the true lengthdesired, since the truelength of a line is… … Fig. 119. True Length of Inclined Line not Shownin Its Projections
