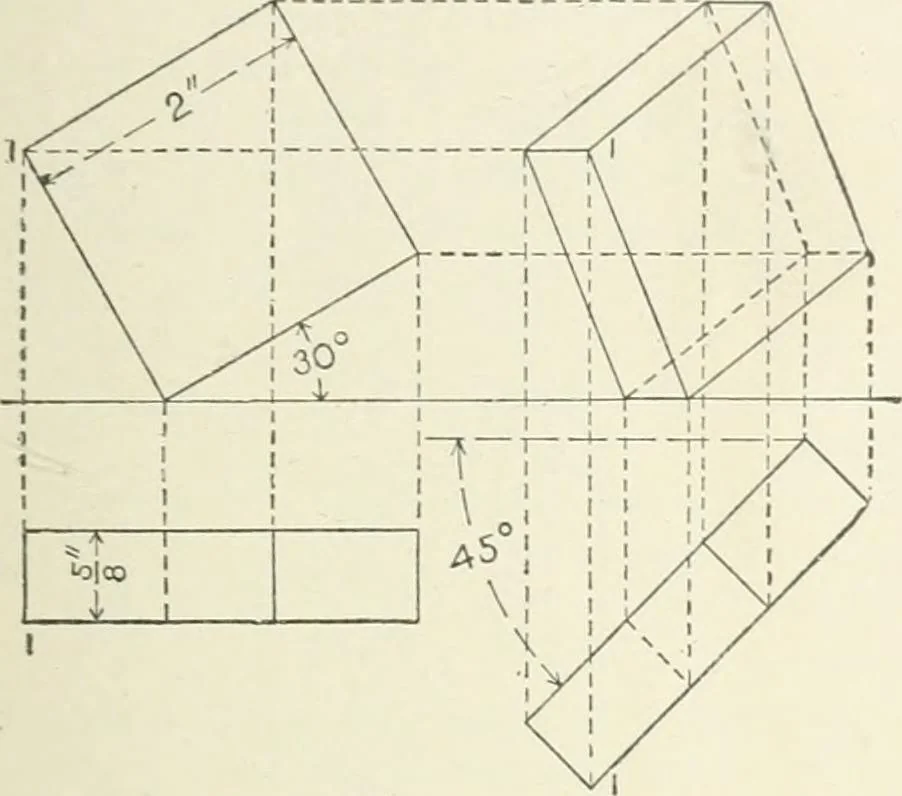

of 30° with H remaining the same, the plan must remain the samesize and sliape. If the angle through which the piisni be turned is 45*^, we MECHANICAL DRAWING. 13 have tlie second plan, exactly the same shape and size as the firstThe elevation is found by projecting the corners of the prism ver … Fig. :o. tically up to the lieights of the same points in tlie firet elevation.All the other points are found in the same way as point No. 1.
