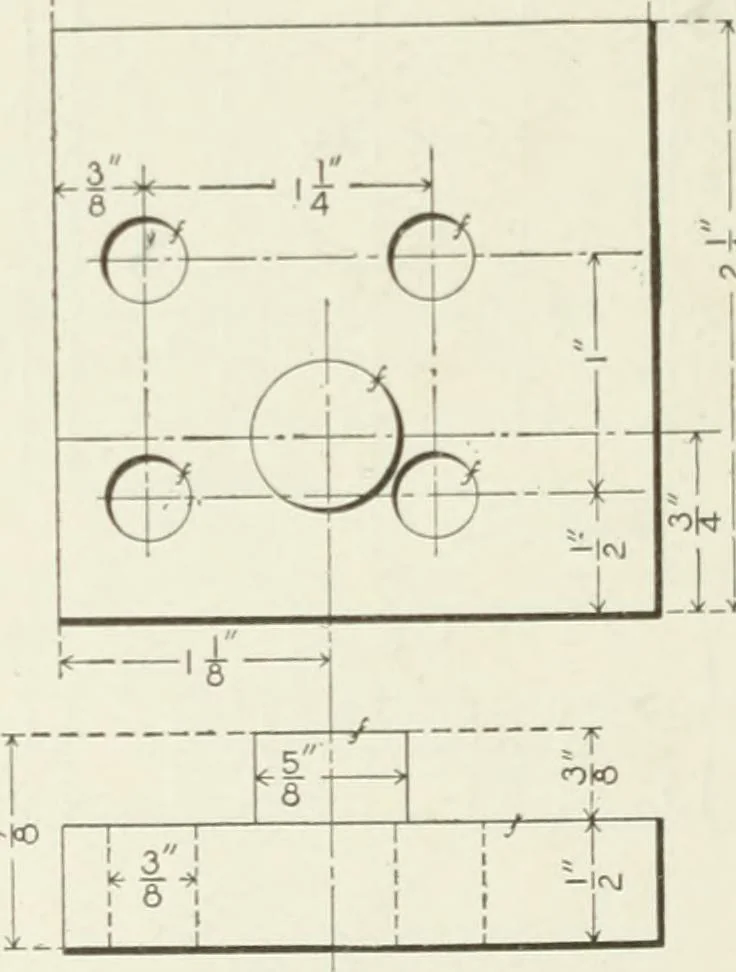

o permit; but if the radius is small, or the dimensions would interfere with other -M parts of the drawing, it I may be done as in I Fig. 24. I In Fig. 28 a small circle is drawn (freehand) around the centerabout which the arc isdrawn, and a dimensionline carried from theedge of this circle to… … Fig. 20. the two methods shown in Fig. 24 the R should be placed afterthe figures. In putting dimensions on a drawing, the figures should beplaced to read from only two sides of the paper, usually from thebottom for dimension lines which are liorizontal, as the 2^ dimen- JIECnAN^ICAL DRANYING. 15…
