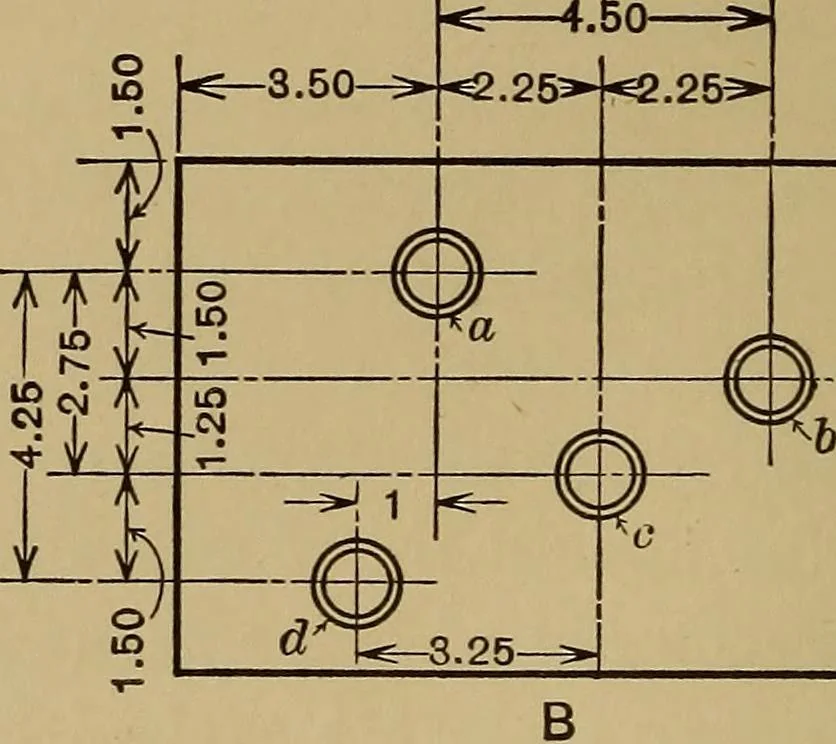

ntersecting the different holes. (The diameters of theholes have been omitted in this and the other illustrations sothat the different methods of arranging the hole-locatingdimensions will stand out more clearly.) While dimensions arranged as shown at A enable each holeto be located, it is… … He—3.60—3. «s 4.5 5.75- -3.50—2J^2.50^1 ^2.25 1 10 1 m A A A A C Machinery Fig. 6. Different Methods of Dimensioning for Locating Holes between the center lines of holes a and b. This might beconsidered an objection on a drawing used in the manufactureof duplicate parts, but of little consequence…
