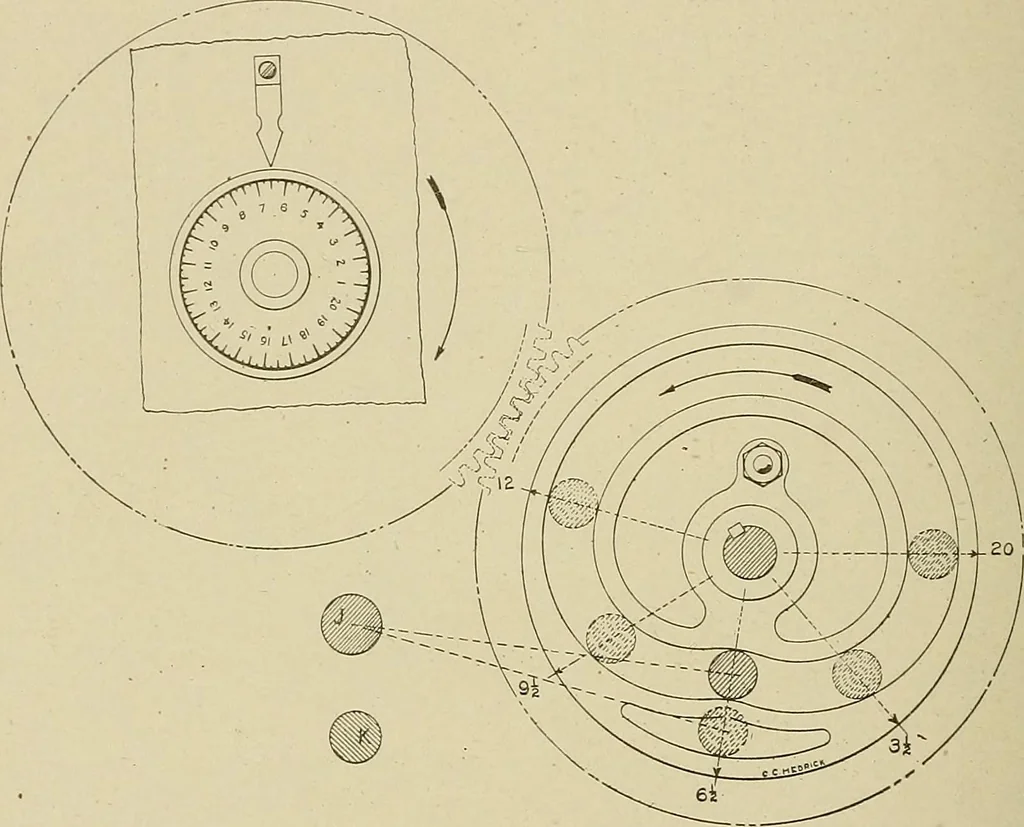

t the cam roll andthe index finger points midway between 6 and 7 on the dial. As 181 142 COTTON SPINNING. the cam continues to tiurn, the nipper cam lever, J3, is depressedowing to the shape of the groove in which the cam roll, T^, runs.This depression causes the nipper shaft, J, to turn slightly… … Fig. 120. Diagram of Nipper Cam. knife into contact with the cushion plate, gripping the cottonfirmly. This takes place Avlien the dial is at 9^ and the parts arein the position shown in Fig. 118. The back edge- of the fluted segment has passed by the frontof the cushion plate and this brings that…
