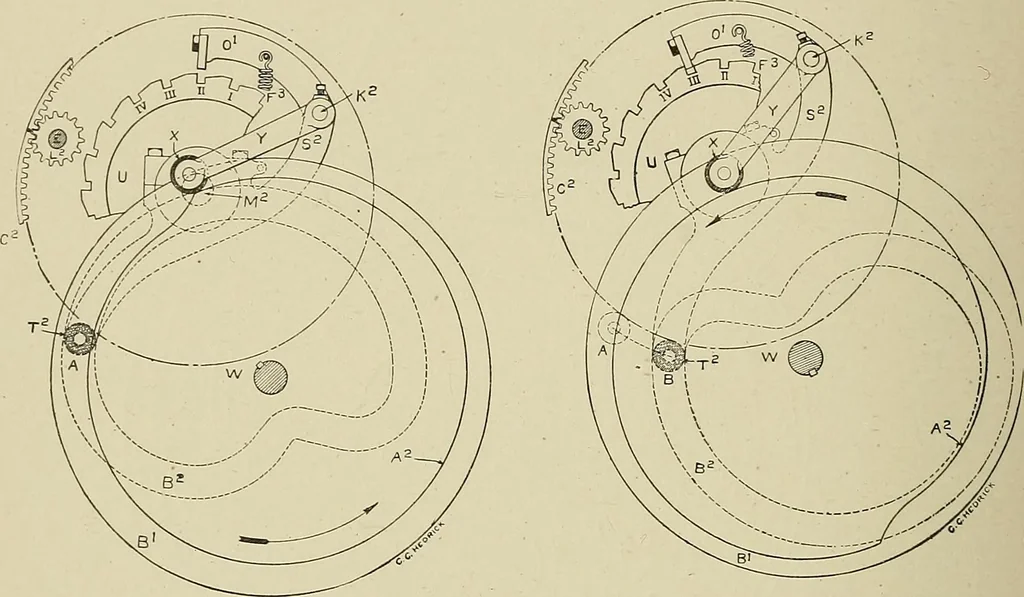

groll, E. 187 148 COTTON SPINNING. As the cam revolves, the shape of the groove in it is such asto cause the pavs^l to move back and forth. The sides of thenotches are square which permits the pawl to engage with them ineither direction. This motion is communicated to the roll, E, bythe notched… … Fig. 127. ■ Fig. 128. Diagrams of Detaching Eoll Cams. the periphery of which runs a roll, X, which is fastened to the lowerend of the arm, Y. The other end of the arm is fastened to tliesame stud as the pawl, O^. This cam simply acts on the pawl,moving it in and out of contact with the notched…
