Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American Technical Society · leaf 214

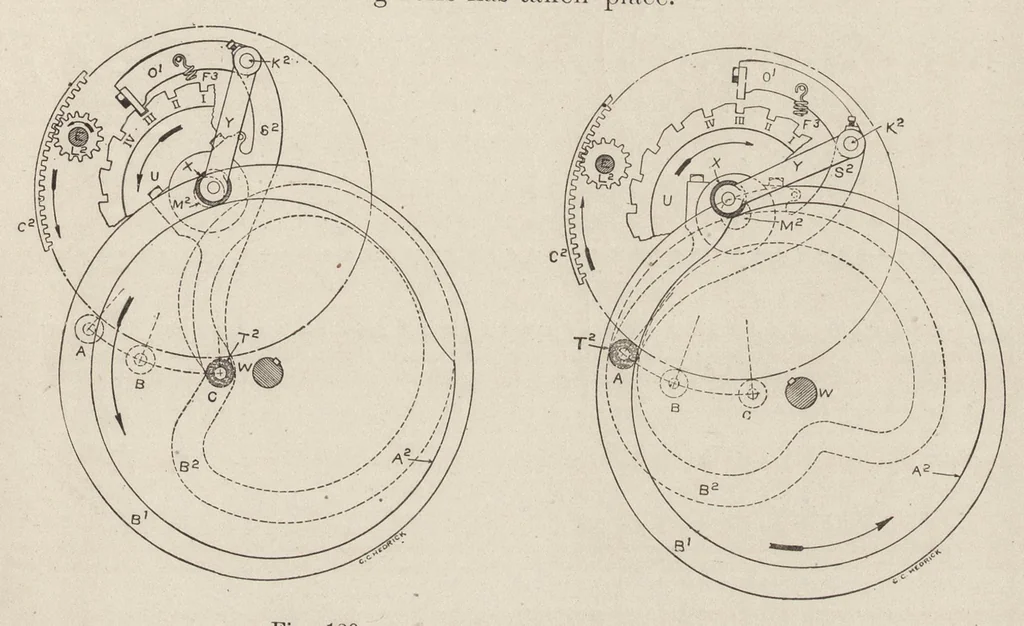

awl, O01, out of the notch in the notched wheel, marked by the numeral, II. Fig. 128 shows the cams as having made about one-half of a revolution. This movement has advanced the cam roll from A to B and has caused the pawl to move from above notch II to III while the gradually decreasing diameter… … : Fig. 129. Fig. 130. ; Diagrams of Detaching Roll Cams. In Fig. 129, the cams are shown as having completed about three-quarters of arevolution. The cam roll, T2, is on the smallest . diameter of the groove at C. The pawl, which is shown just en- tering notch III in Fig. 128, has engaged the whole…
Textile industry · Textile fabrics · Textile industry -- Encyclopedias · Textile fabrics -- Encyclopedias
Internet Archive · Getty Research Institute · Public domain (published before 1931). Free to use for anything.
