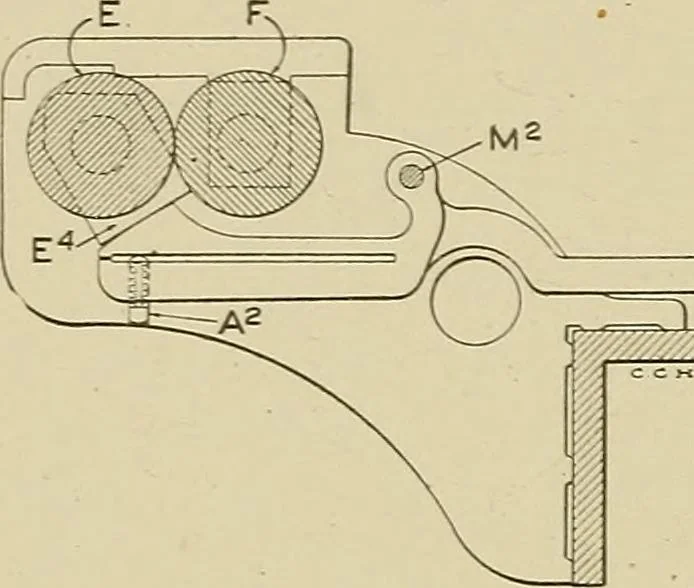

gure 149 shows a device for stopping the drawing frame ifthe sliver should wind up on either of the calender rolls orbreak down before it gets to them. This stop motion, which isreally two stop motions operated by one mechanical device, iscaused to operate by the rising and falling of the outer… … >:^^^M^^-^--^>r-^-^-^^--^^ /; Fig. 149. Calender Roll Stop Motion. long end which is forked so as to engage die rocker shaft arm, P,when either raised or lowered. If the sliver winds up on either calender roll, the increaseddiameter caused will move the roll, E, away from the roll. F, andin…
