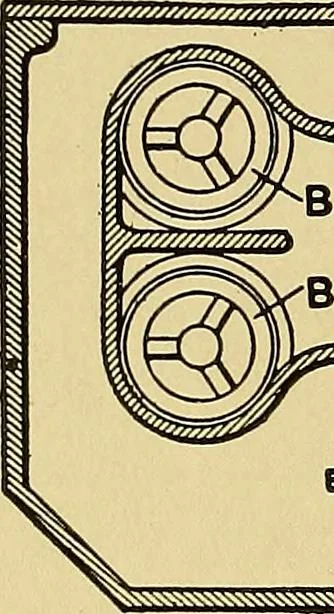

the 94 VALVE SETTING steam chamber and serve to hold it in place; and steam is admitted tothe cylinder through ports p, which coincide at proper intervals with thecylinder ports P. The exhaust passes out over the ends of the valve di-rectly into the exhaust chamber which surrounds the valve. In… … r\ STEAM CHAMBER EXHAUST CHAMBER FIG. 98.—VERTICAL SECTION C-D.
