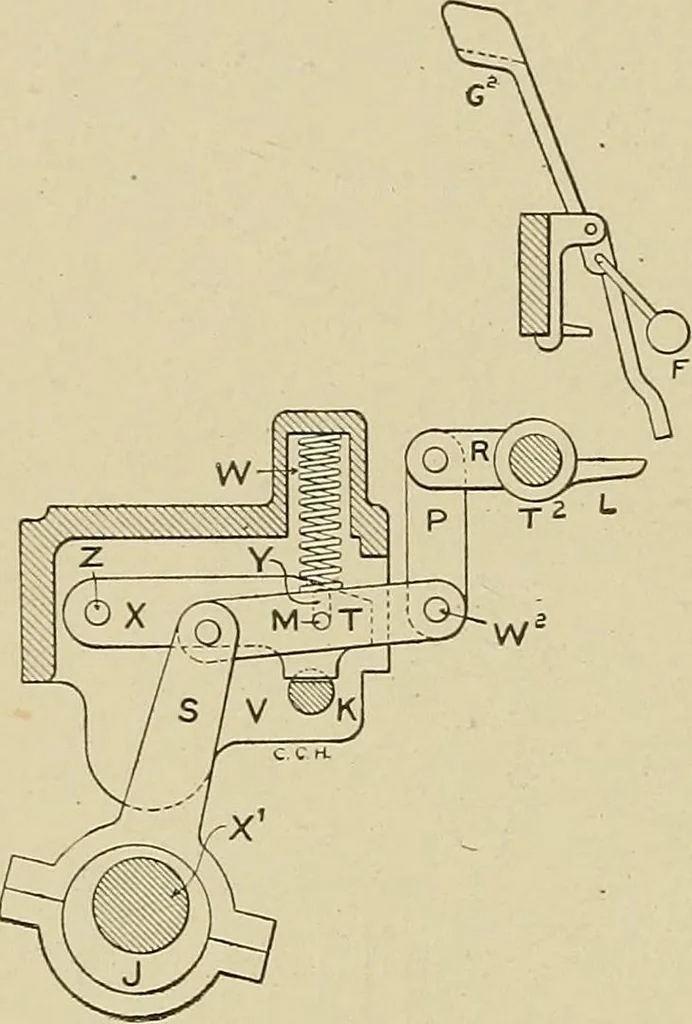

and eccentric is through the eccentricarm, S, rocker, T, link, P, and, arm, R.• The rocker is hung in the bottom of a slot, Y, in the stand, V, and the pin, M, upon which the rockeris hung, projects into a hole in thelever, X, and in its normal position,is kept from rising by the spring,W, The arm,… … Fig. 177. Back Stop Motion. in passing over them, holds thetails clear of the path of the fin-ger, L. When the machine is startedthe spring rod, K, which moveswith the shipper rod, slidesalong until a slot cut in its uppersurface is beneath one end ofthe lever, X. When this happens,X, which is…
