Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 55

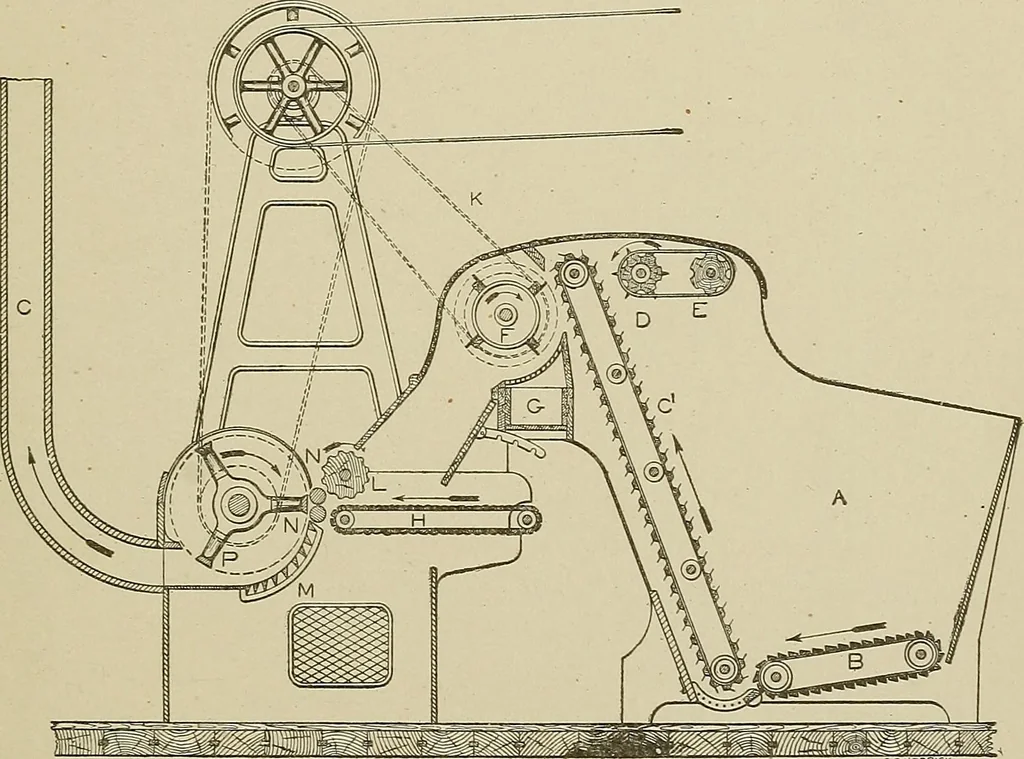

e noted. Between the lower endof the elevating apron and the end of the bottom apron is a spaceof about 1^ inches, which allows dirt and foreign substances tofall through into the hopper screen. This screen can be droppedand the dirt removed. The cotton which is left upon the pins of the elevating… … Fig. 4. Section of Automatic Feeder and Opener. face, four wooden blades faced with leather, which are slightly incontact with the pins of the elevating aprou, and, as the dofferruns about 160 revolutions per minute, a continuous series ofblows is given, by which the cotton is stripped or beaten…
Textile fabrics · Textile industry
