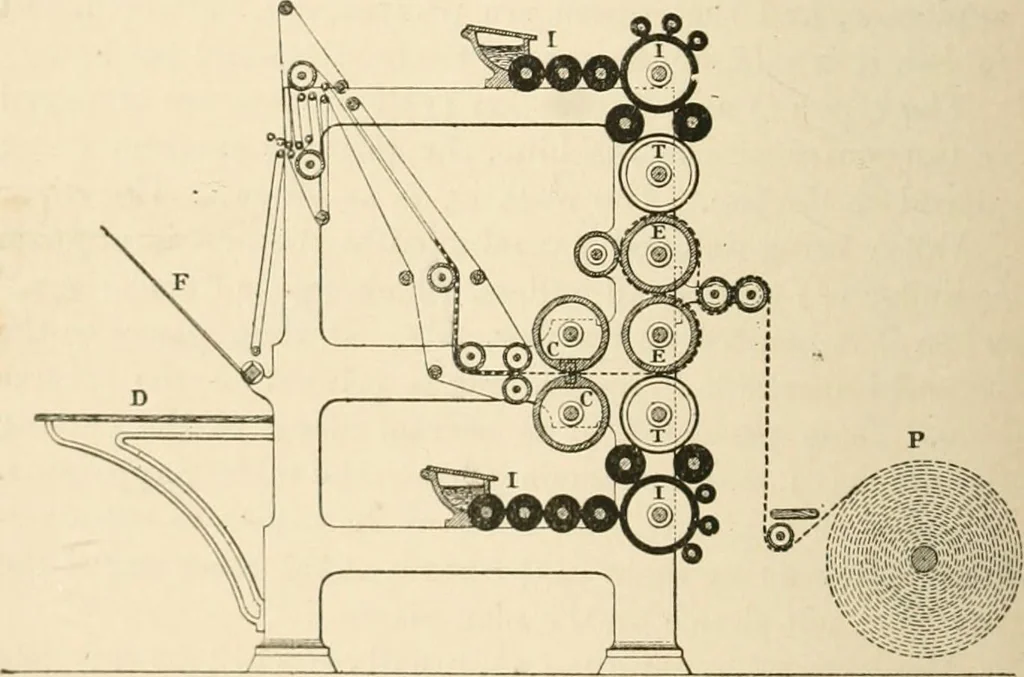

ng them in the boxes at the other end of themachine, not shown on the plan given. The wetting apparatus (w), usually worked by fine jetsof water, which are emitted from a series of pin-holes in apipe, is to the right of the reel of paper, and the inkingcylinders (i), with their respective vibrating… … Fiij. u:i ROTARY MACHINES. 243 The Marinoni. The Marinoni rotary machine, fig. 143, as will be seen,has four cylinders arranged in a perpendicular manner.The two middle ones (e) are those which give the impres-sion, and the other two (t), on top and bottom, are thoseon which the curved plates are…
