Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School of Correspondence · Chicago, American School of Correspondence · leaf 104

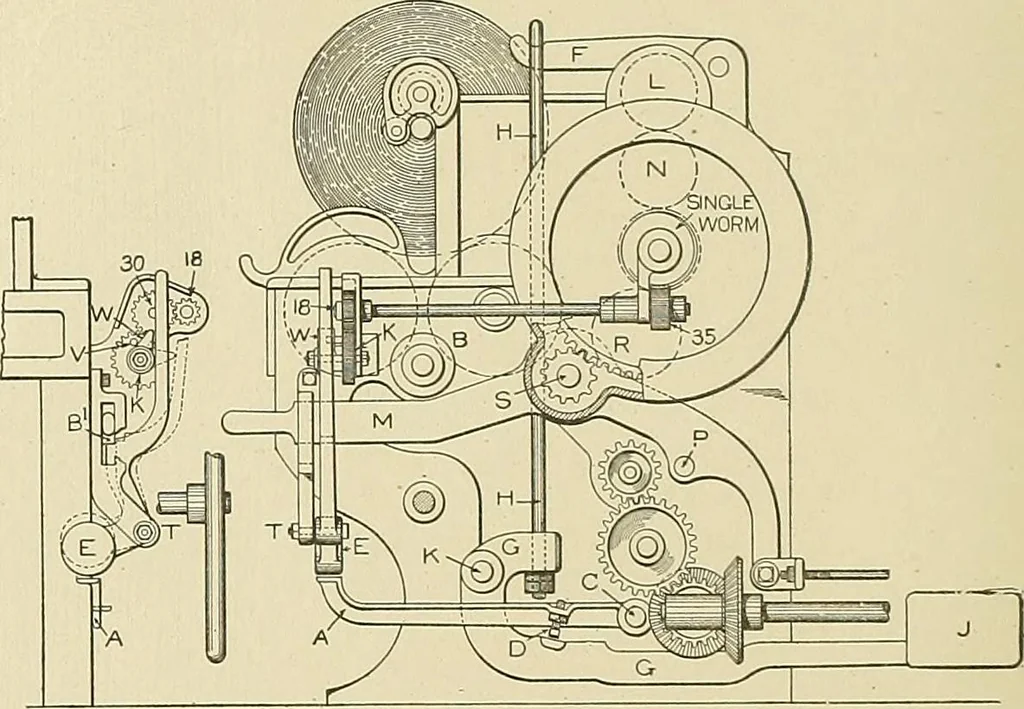

ts outer end is just clear of the under sideof the knock-off latch, E. This latch turns on the stud, T, andhas a notch, B^, in its upper end hy which the drop lever, M, thatcarries the pinion, S, is held in position. Should any foreign sub-stance be drawn between the calender rolls, the unusual… … Fig. 44. Automatic Safety Stop. which in turn will be moved to one side, allowing the drop leverto fall, disengaging the gears, R and S, and stopping the calenderrolls. The adjusting screw enables the picker to be set so that avery slight increase of thickness in the lap will cause the picker…
