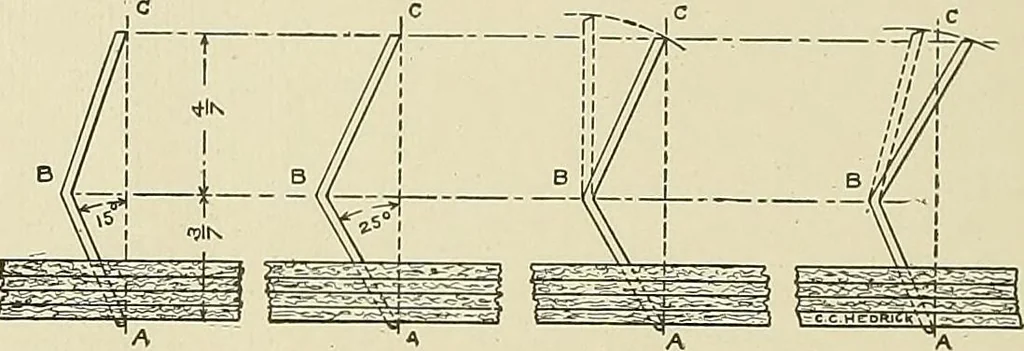

ral enlarged viewsof card teeth, will be considered. In Fig. 77, the crown of the tooth is marked A, the knee ismarked B and the point, C. The angle of that part of the toothbetween A and B is about fifteen degrees from a vertical line, andthis is the average of the wire for cotton card clothing.… … Fig. 77. Fig. 78. Fig. 79. Enlarged views of card teeth. Fig. 80. beneath the point. Otherwise, they would be caught by the fiatsor thrown off, to fall through the screws. In this way, the spacesbetween the teeth fill rapidly, which necessitates stripping the cardmuch oftener than would be required…
