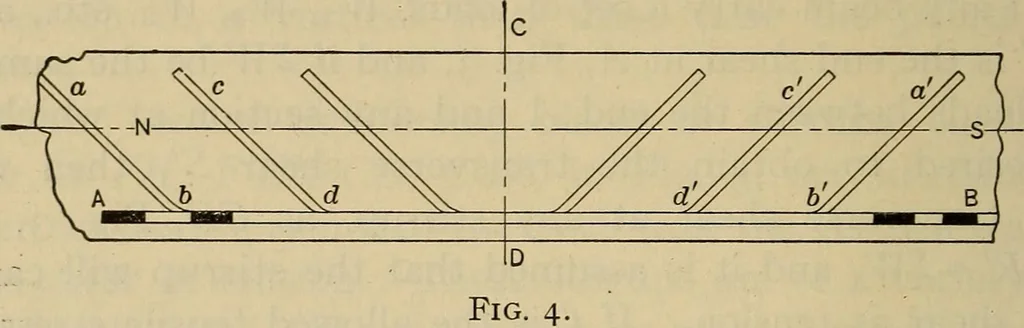

n Figs.2 and 3 and the vertical stirrups shown in Fig. 3 effectivelyperform their functions, both would not be needed at thesame part of a beam, but as the effectiveness of each detailby itself is somewhat uncertain, both are frequently usedconcurrently. The stirrups may judiciously be used in… … crete beam on both sides of CD, the centre of span. Thebeam may be either a T-beam or a beam of rectangularsection. The steel reinforcement AB is supposed to be onthe tension side of the beam only, although a preciselysimilar reinforcement might be placed on the compressionside also. The small…
