Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School of Correspondence · Chicago, American School of Correspondence · leaf 202

An illustration from Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 202

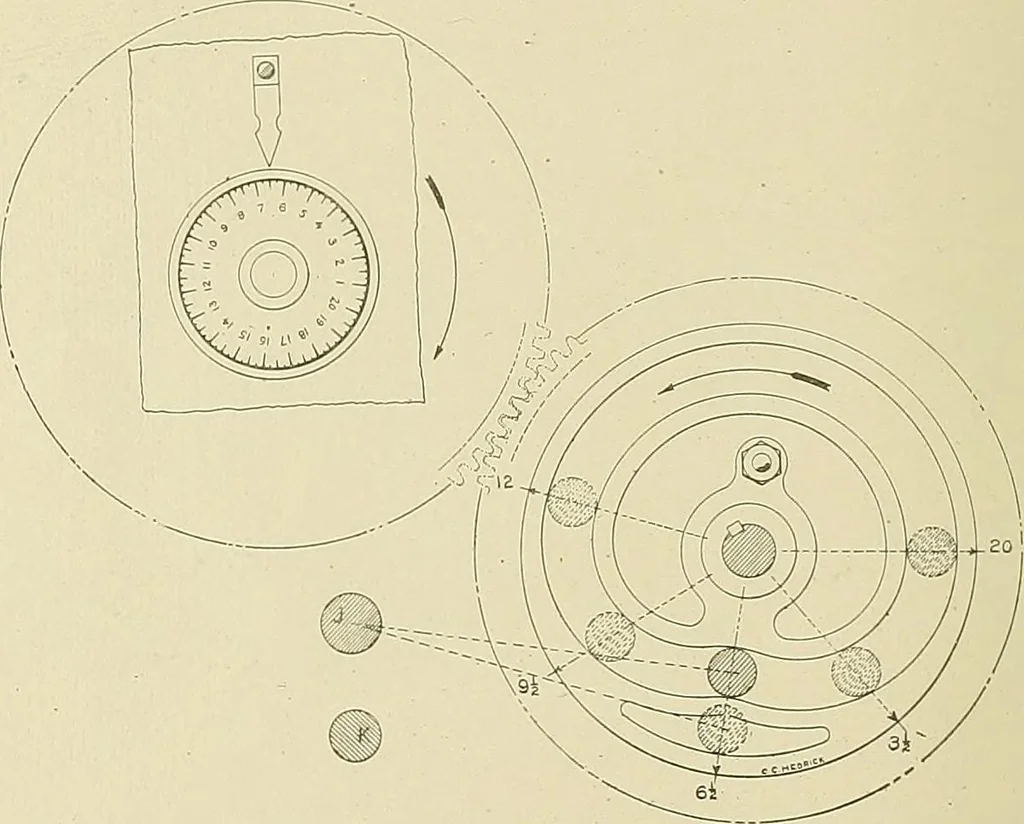

the cam roll andtlie index finger points midway between (J and 7 on the dial. As 181 142 COTTON SPINNING. the cam continues to tarn, the nipper cam lever, JS, is depressedowing to the shape of the groove in Avhich the cam roll, T*, runs.This depression causes the nipper shaft, J, to- turn slightly… … Fig. 120. Diagram of Nipper Cam. knife into contact with the cushion plate, gripping the cottonfirmly. This takes place when the dial is at 9J and the parts arein the position shown in Fig. 118. The back edge of the fluted segment has passed by tlie frontof the cushion plate and this biings that…
