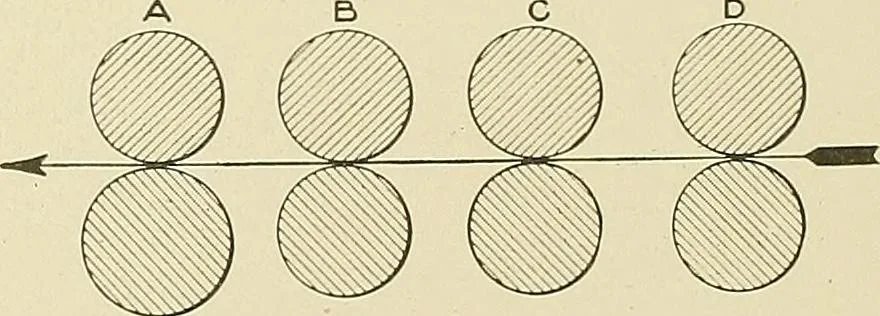

Fig. H3. Front Elevation of Drawing Frame Driven from Above. sliver plate, J, through the trumpet, ]^, and between the calenderrolls, E and F. From this point, it falls through the spout of thecoiler, G, and is coiled in the can, H. Stop Motions. The drawing frame is provided with four stopmotions:… … A B C P Fig. 143. Section Showing Draft Rolls. at the front of the machine becomes full, two calender roll stopmotions which operate when the sliver is absent from between thecalender rolls or when a wind-up occurs on either of them, anda back stop motion which causes the head to stop when the…
