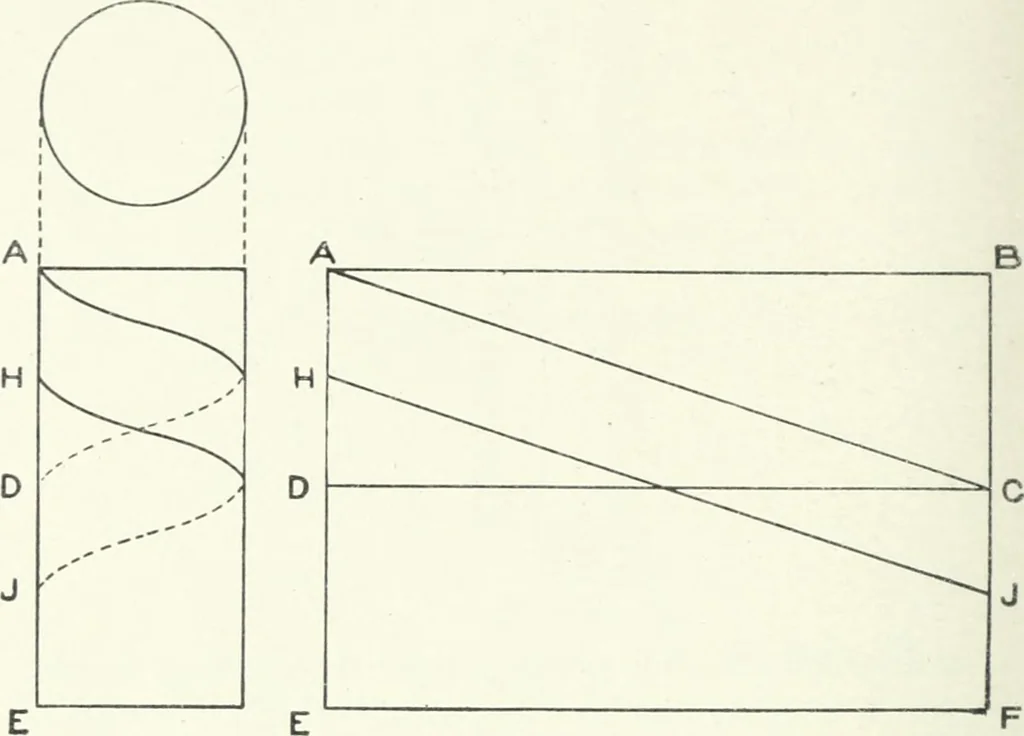

^^^^^ ^^y ^m. Fis:. 24. the helix, it will be necessary to understand something about thiscurve before attempting the study of the screw. Take a cylindrical piece of wood, such as is shown in Fig. 25.and a rectangular piece of paper, ABFE, with the side AB equal 333 26 MECHANISM. to the… … AD, and draw the line DC parallel to AB, we have the rectangle,ABCD. Now draw the diagonal, AC, of the rectangle and wrapthe paper around the cylinder, keeping the side AE on an elementof the cylinder; the paper will just cover the cylinder, the edge
