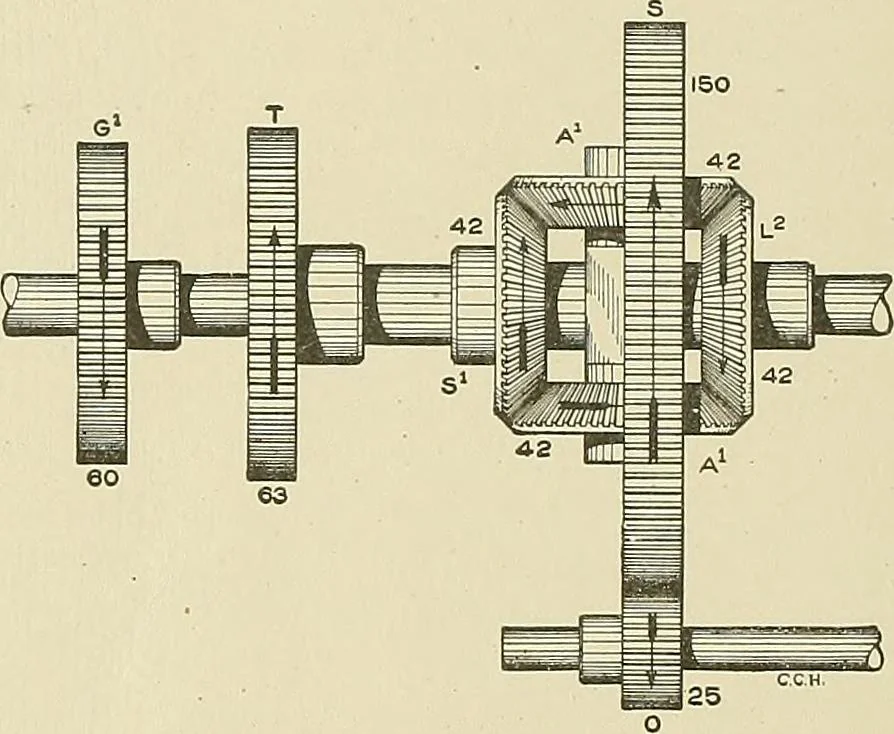

he same as the sleevegear. The mitre gear, Jj, is fast upon the driving shaft and themitre geai-, S, is fast upon the hub of the sleeve gear. The gears, S^ and TJ, turn in opposite directions and, if theyare run at the same speed, the sun wheel will remain stationary.But if S^ is run at a greater… … Fig. 165. Fly Frame Differential Gearing. revolutions, in the opposite direction, the sun wheel will turn onerevolution or one-half the difference between the revolutions ofthe gears, S and Jj, but in the direction of S. The speed of the driving shaft is 400R.P.M. and, as we havefound, the speed of…
