A short treatise on the designing and construction of gearing and mill-work. Accompanied by an explanation of the construction and use of the odontograph of Prof. Willis .. (1873)
[Scott, David] engineer. [from old catalog] · New York, D. Appleton and company · leaf 79

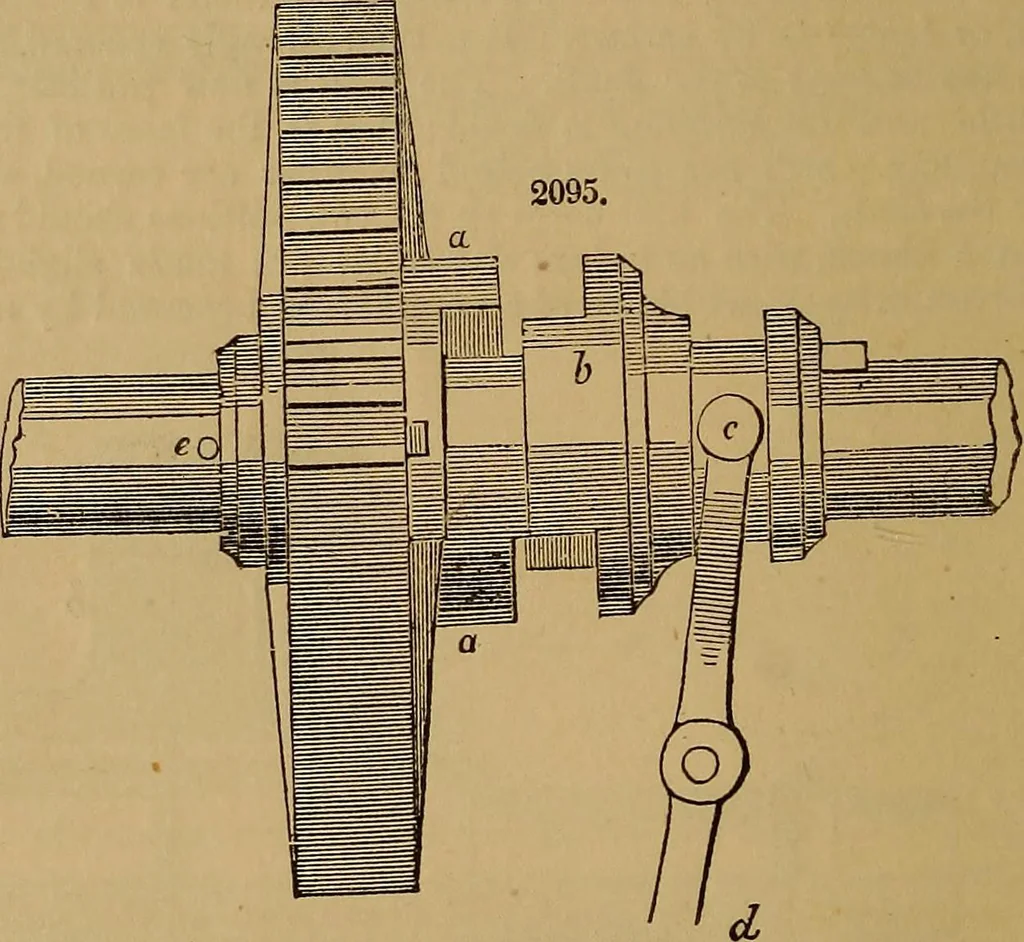

e end-long motion common to the other modes, the parts were locked together by a boltfixed upon the side of the pulley, and which, when shifted towards the axis, engaged with an arm of across, of which the part 6, in Fig. 2095, is the modern representative. The iDolt was wrought by meansof a key… … GEERING. 71 Is derived from two sources—a circumstance which frequently occurs in locahties affording water poweito some extent, and yet not in sufficient abundance for the demands of the work. The deficiency itusually supplied by a steam-engine; and the two powers are concentrated in the main line…
Gearing · Mills and mill-work · Odontograph
