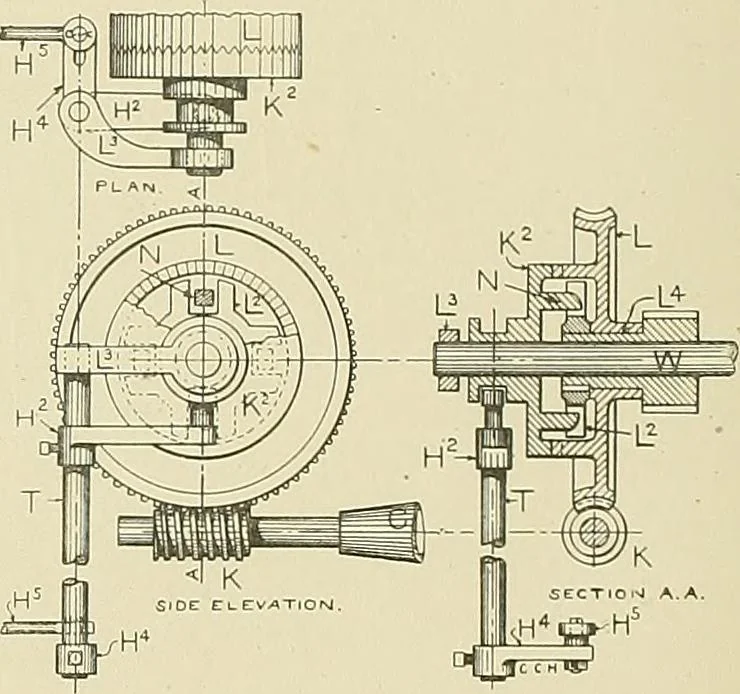

of a clutch being thi-owu into contact witli the wormgear. Au enlarged section, an elevation andclutch and worm gear are shown in Fig. 39.a sleeve, L*, with a partial plan of thisOn the stud, W, is gear on one end whichdrives the evener andfeed rolls and a dog,or driver, L^, keyed tothe other end.… … Fig. R(}. Clutoh iiud Worm Gear. clutch. When the clutch is thrown out, the worm gear runswithout imparting motion to the evener and feed rolls but whenthe calender head is started, the shipper rod, H^, which is drawnforward by the raising of the drop lever causes the clutch toengage with the teeth…
