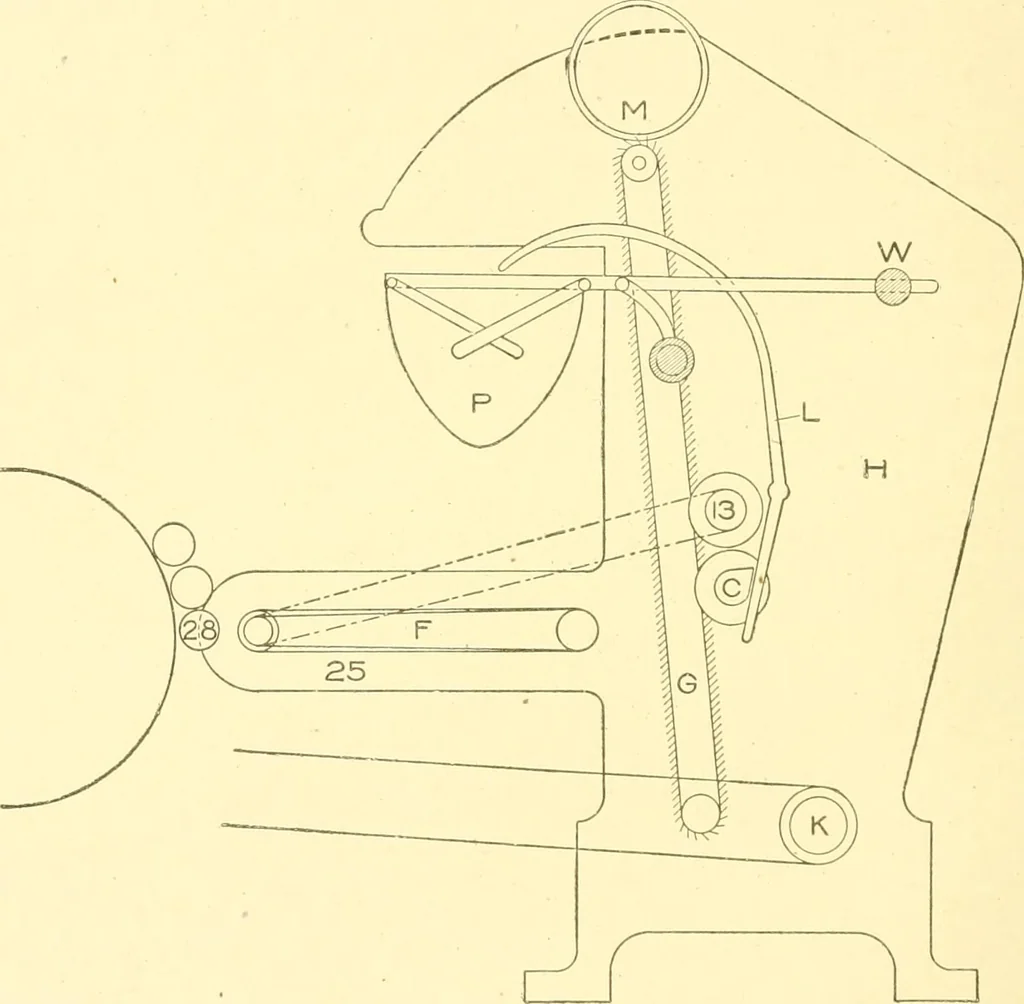

f 25 and 28teeth. The feed sheet moves | X ff X 2^ X S^ = I inches perminute. But the cam C (Fig. 68) which opens the pan P by meang 113 102 WOOLEN AND WORSTED SPINNING of lever L, is also driven direct from the feed roll, through the samegears, 25 and 28, and a chain over two sprocket wheels of 11… … Fig, 6S. 8,Jy inches, and if the pan always contains one-half pound of mooI,it follows that every 8^^- inches of feed sheet must always becovered by one-half pound of wool. In this, the whole principle ofthe machine is embodied. The mechanism for filling the pan is quite simple. Thesheet G is…
