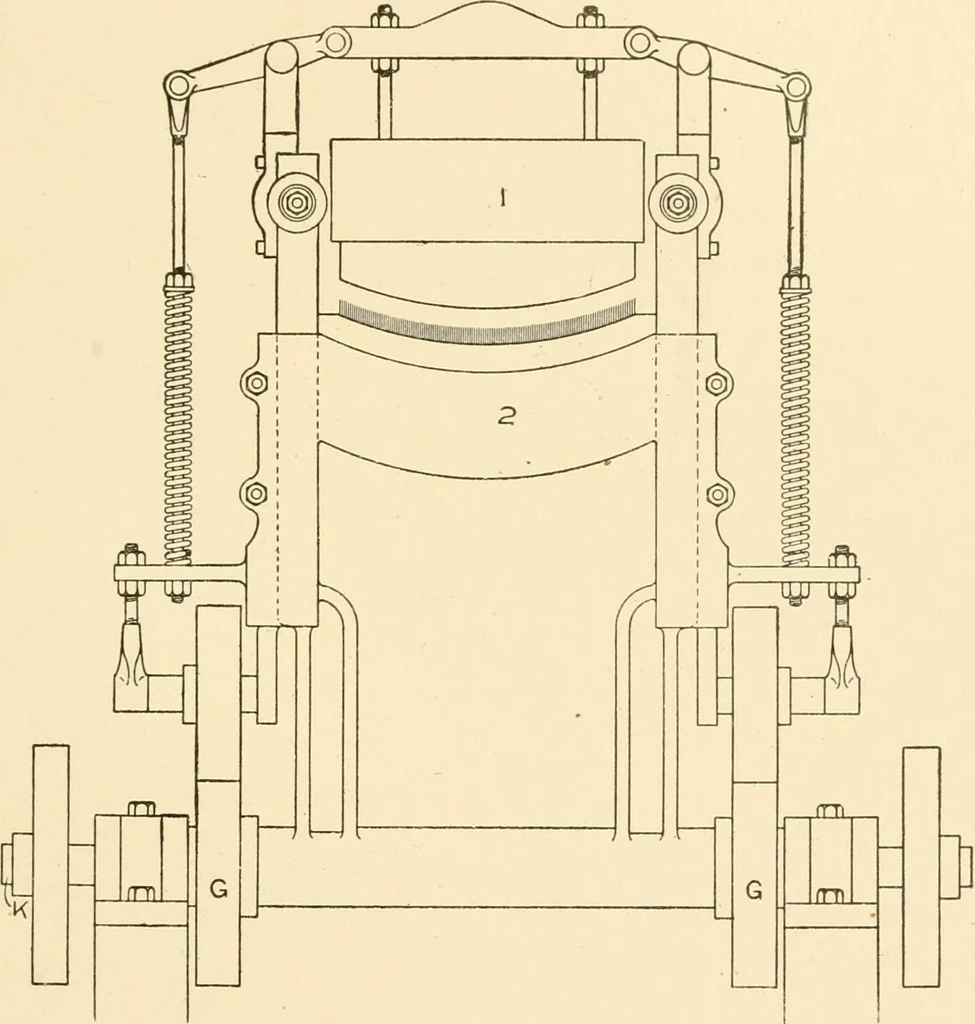

similar to a gill box, exceptthat the fallers are curved, while in all gill boxes they are straight.But from this point there is a great change; for, in place of front rollsthe lister comb has what is termed a nip. J.6f5 WOOLEN AND WORSTED SPINNING 149 Nip. The nip, shown in detail in Fig. 97, und… … Fig-. 97. Front Elevation of Nip. motion is derived from the stud L, on the gear N, through the crankM. (Shown in Fig. 95). In Fig. 95 the nip is shown at B, close up to the fallers, which isthe farthest position backward; and at B in contact with the carryingcomb C, which is the farthest point…
