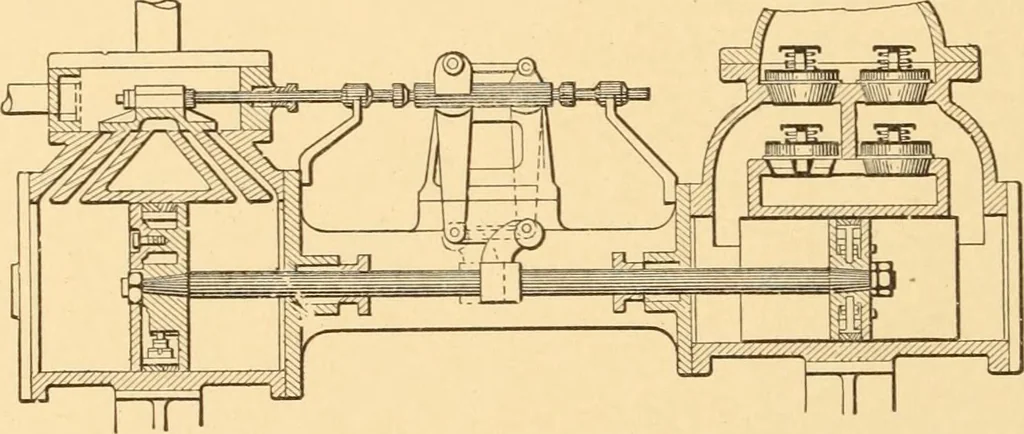

301. MULTINOZZLE TURBINE or impact wheel. German type. Thenozzles are in a segment and closed forregulation of power by a sliding seg-ment on the outside, operated by apinion with a controlling wheel outsidethe case. The water strikes the face ofthe buckets and is discharged at theirsides. 302.… … A rocker arm linked to the piston rod of each side of the pump oper-ates its opposite valve. 303. VALVE MOVEMENT. Single steam pump. Knowlestype. Freedom from a dead center is secured by the use of the
