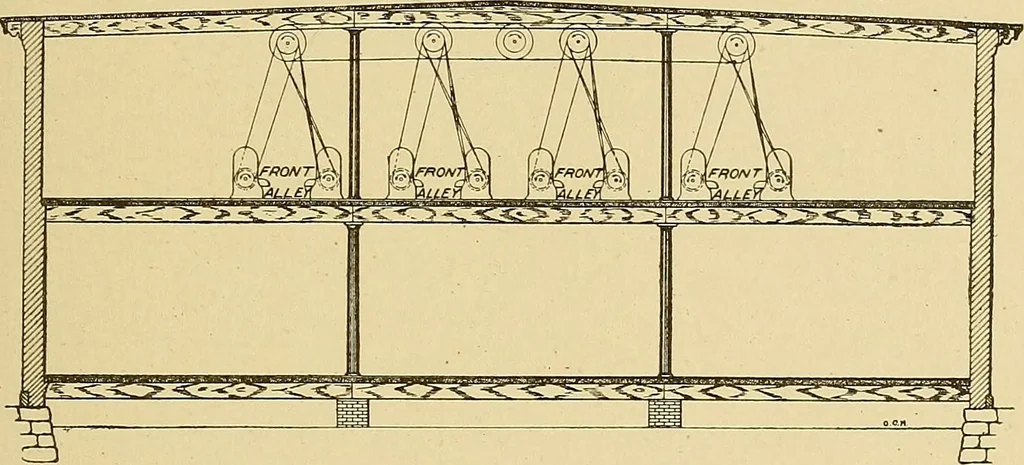

ransversely■of the mill. The most common arrangement is shown in Fig.159.In this illustration there are three processes. The slubbers areplaced, as a pair, directly in front of the drawing frames, the inter-mediates are placed on each side of the slubbers and the fineframes extend across the mill… … Fig. 160. Sectional Elevation Showing Fly Frames. center of the front or work alley. The reason for this is veryapparent if we examine Fig. 160, which is a sectional elevation show-ing the fine frames illustrated in the previous drawing. Thedriving pulleys, which are near the back side of the…
