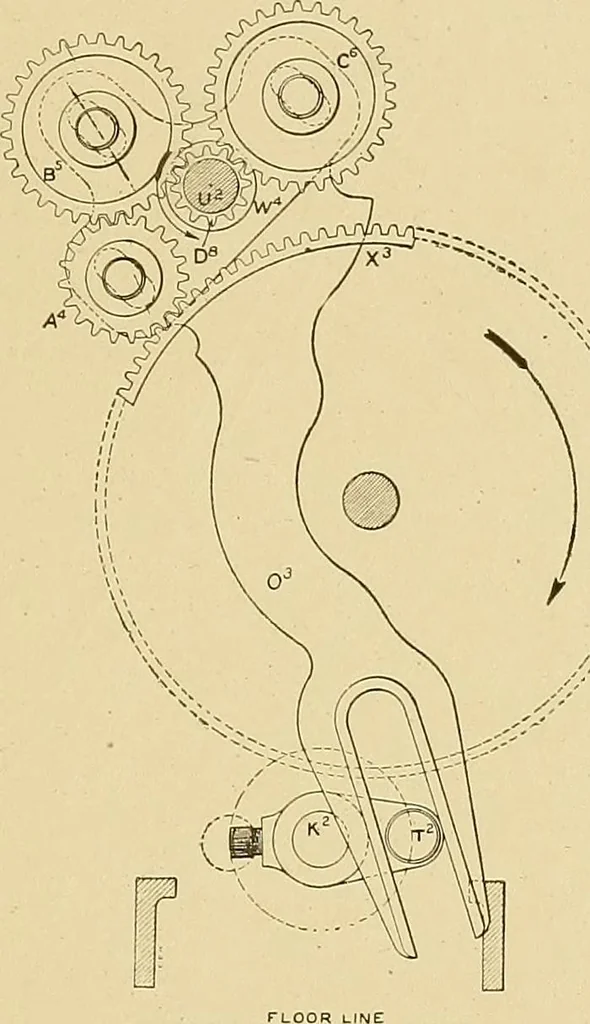

completes the train of gearsso that the half revolution of the reverse shaft, which takes place ateach end of the traverse, causes the cone belt to be moved to a differ-ent place on the cone. The gear, B^, is the tension gear, which is changed to give thecorrect distance that the cone belt must be… … Elevation Showing ReverseCrank and Gearing. 347 206 COTTON SPINNING is moved in the opposite direction from that indicated by the arrowand the belt is shifted onto the loose pulley. This movement does notdisconnect the train of gears, between the reverse shaft and cone rackas the stop-motion latch…
